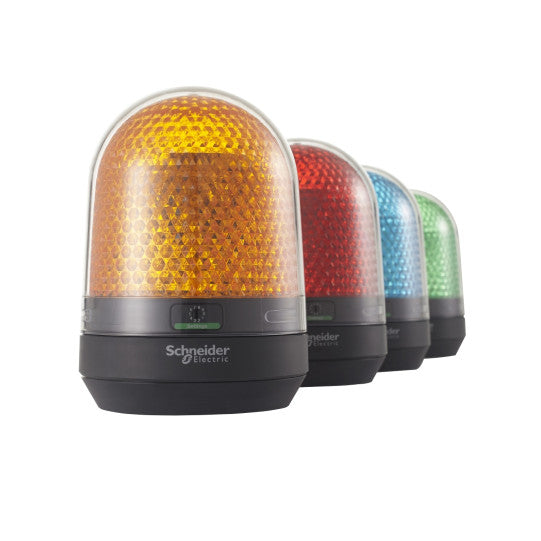

Illuminated beacon with buzzer, red, Ø100, 70...90 dB, integral LED, 12...24 V DC - XVR3B04S
SKU : XVR3B04S
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Illuminated beacon with buzzer, red, Ø100, 70...90 dB, integral LED, 12...24 V DC - XVR3B04S
DESCRIPTION
| Range of product: | Harmony XVR |
|---|---|
| Product or component type: | Beacon |
| Device short name: | XVR3 |
| Beacon or indicator bank unit type: | LED unit |
| Sound signalling: | Buzzer: 70...90 dB at 1 m |
| Mounting diameter: | 100 mm |
| Light source: | LED, red |
| Device application: | ForkliftBulldozerAutomated guided vehicle (AGV) |
| Signalling type: | RotatingBlinkingFlashing |
|---|---|
| Assembly style: | Ready assembled |
| Material: | PC (polycarbonate): lensesPBT (polybutylene terephthalate) + PC (polycarbonate): bodyEPDM (ethylene propylene diene monomer): base |
| [Us] rated supply voltage: | 12...24 V DC |
| [Ue] rated operational voltage: | 10...30 V DC |
| Inrush current: | 3 A |
| Power consumption in W: | 3.1 W |
| Marking: | CE |
| Installation direction: | Upright indoorSideways indoorInverted indoorUpright outdoor |
| Electrical insulation class: | Class II |
| Current consumption: | 3000 mA |
| Length: | 100 mm |
| Width: | 100 mm |
| Height: | 139 mm |
| Product weight: | 0.538 kg |
| Ambient air temperature for operation: | -20...50 °C |
|---|---|
| Ambient air temperature for storage: | -35...70 °C |
| Relative humidity: | 35...85 % without condensation |
| Vibration resistance: | 4.6 gn (sideways)4.6 gn (inverted)7.1 gn (upright) |
| IP degree of protection: | IP23 (sideways)IP23 (inverted)IP23 (upright) |
| Code EAN: | 3606480611858 |
|---|
