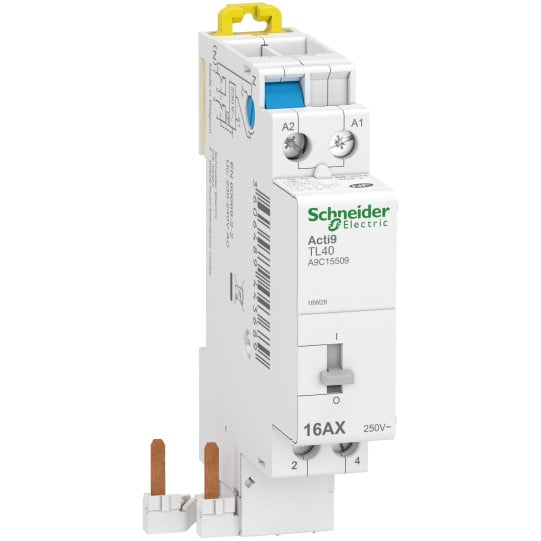

impulse relay, Acti9 TL40, 2P, 1NO, 16 A, 230 V AC, 50 Hz - A9C15509
SKU : A9C15509
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
impulse relay, Acti9 TL40, 2P, 1NO, 16 A, 230 V AC, 50 Hz - A9C15509
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product name: | Acti9 TL40 |
| Product or component type: | Impulse relay |
| Device short name: | TL40 |
| Device application: | Standard |
| Poles description: | 2P |
| Pole contact composition: | 2 NO |
| [In] rated current: | 16 A |
| Network type: | AC |
| [Uc] control circuit voltage: | 230 V AC 50 Hz |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 250 V AC 50 Hz |
| [Ui] rated insulation voltage: | 500 V AC |
| [Uimp] rated impulse withstand voltage: | 2.5 kV |
| Control type: | Remote and manual control |
| Control signal type: | Impulse |
| Switching frequency: | 5 switching operations/minute |
| Impulse duration: | 50 ms |
| Remote control type: | Illuminated push-button 3 mA |
| Local signalling: | ON/OFF indication |
| Hold-in power consumption in VA: | 19 VA |
| Mounting mode: | Fixed |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 87 mm |
| Width: | 18 mm |
| Depth: | 69 mm |
| Product weight: | 105 g |
| Electrical durability: | AC-22: 200000 cycles |
| Connections - terminals: | Power circuit: tunnel type terminals 1 cable(s) 1...4 mm² rigidPower circuit: tunnel type terminals 2 cable(s) 1...2.5 mm² rigidPower circuit: tunnel type terminals 1 cable(s) 1...4 mm² flexiblePower circuit: tunnel type terminals 2 cable(s) 1...2.5 mm² flexibleControl circuit: tunnel type terminals 1 cable(s) 0.5...1.5 mm² rigidControl circuit: tunnel type terminals 1 cable(s) 0.5...1.5 mm² flexiblePower circuit: tunnel type terminals 1 cable(s) 1...4 mm² flexible with ferrulePower circuit: tunnel type terminals 2 cable(s) 1...2.5 mm² flexible with ferruleControl circuit: tunnel type terminals 1 cable(s) 0.5...1.5 mm² flexible with ferrule |
| Wire stripping length: | 9 mm |
| Tightening torque: | 1 N.m |
| Product compatibility: | No auxiliary |
| Compatibility code: | TL |
| Standards: | IEC 60669-1IEC 60669-2-2 |
|---|---|
| Quality labels: | NF |
| Noise level: | 60 dB |
| IP degree of protection: | IP20 conforming to IEC 60529 (on opening)IP40 conforming to IEC 60529 (in enclosure) |
| Pollution degree: | 3 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606489443689 |
|---|
