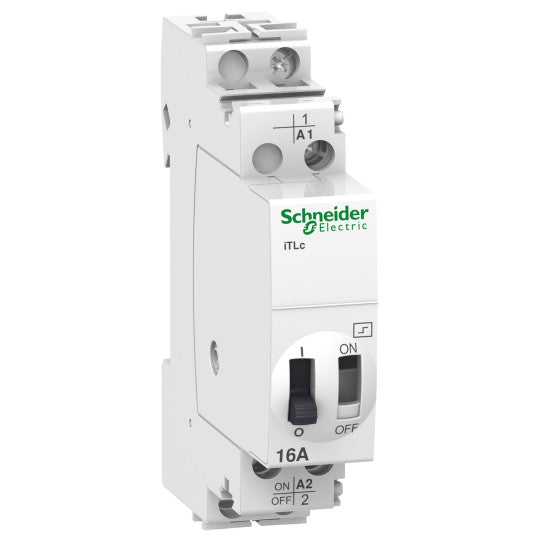

impulse relay iTLc - 1P - 1NO - 16A - coil 24 VAC 50/60Hz- - A9C33111
DESCRIPTION
| Range of product: | ITL |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 iTL |
| Product or component type: | Impulse relay |
| Device short name: | ITLc |
| Device application: | Centralised control |
| Poles description: | 1P |
| Pole contact composition: | 1 NO |
| [In] rated current: | 16 A |
| Network type: | AC |
| [Uc] control circuit voltage: | 24 V AC 50/60 Hz |
| Network frequency: | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 250 V AC 50/60 Hz |
| Control type: | Remote and manual controlCoil deconnection |
| Control signal type: | Impulse |
| Switching frequency: | 100 switching operations/day5 switching operations/minute |
| Impulse duration: | 50 ms...1 s |
| Remote control type: | Push-button |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Fixed |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 84 mm |
| Width: | 18 mm |
| Depth: | 60 mm |
| Electrical durability: | AC-21: 200000 cyclesAC-22: 100000 cycles |
| Connections - terminals: | Control circuit: tunnel type terminals 1 cable(s) 0.5...4 mm² rigidControl circuit: tunnel type terminals 1 cable(s) 0.5...4 mm² rigid with cable endControl circuit: tunnel type terminals 1 cable(s) 1...4 mm² flexibleControl circuit: tunnel type terminals 1 cable(s) 1...4 mm² flexible with ferrulePower circuit: tunnel type terminals 1 cable(s) 1.5...4 mm² rigidPower circuit: tunnel type terminals 1 cable(s) 1.5...4 mm² rigid with cable endPower circuit: tunnel type terminals 1 cable(s) 1.5...4 mm² flexiblePower circuit: tunnel type terminals 1 cable(s) 1.5...4 mm² flexible with ferrule |
| Wire stripping length: | 11 mm |
| Tightening torque: | 1 N.m |
| Range compatibility: | iATLs iETL iTL 16 iATLc+c |
| Market segment: | ResidentialSmall commercial |
| Compatibility code: | ITLc |
| Standards: | EN 669-2-2EN 669-1 |
|---|---|
| Product certifications: | GOSTCCC |
| Quality labels: | NFIMQKEMACEBEC |
| Noise level: | 60 dB |
| IP degree of protection: | IP20 conforming to IEC 60529 (on opening)IP40 conforming to IEC 60529 (in enclosure) |
| Pollution degree: | 3 |
| Tropicalisation: | 2 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480092091 |
|---|
