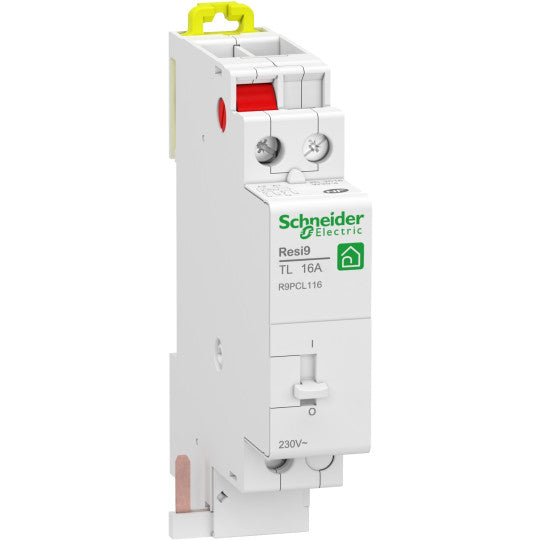

Impulse relay, Resi9 TL, 1P, 1 NO, 16 A, coil 230 V - R9PCL116
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 XP TL |
| Product or component type: | Impulse relay |
| Device application: | Remote control |
| Poles description: | 1P |
| Pole contact composition: | 1 NO |
| Auxiliary contact composition: | Without |
| Network type: | AC |
| Standards: | EN/IEC 60669-1EN/IEC 60669-2-2 |
| Product certifications: | NF |
| [In] rated current: | 16 A |
|---|---|
| Network frequency: | 50 Hz |
| [Ue] rated operational voltage: | 250 V AC 50 Hz |
| Control type: | Remote and manual control |
| Technology type: | Electromechanical |
| Control signal type: | Impulse |
| Switching frequency: | 5 switching operation/minute |
| Impulse duration: | 50 ms |
| Remote control type: | Illuminated push-button 3 mA |
| Local signalling: | ON/OFF indication |
| [Uc] control circuit voltage: | 230 V AC 50 Hz |
| Supply inrush power: | 19 VA |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 86.5 mm |
| Width: | 18 mm |
| Depth: | 68.6 mm |
| Colour: | White (RAL 9003) |
| Electrical durability: | AC-21: 200000 cyclesAC-22: 100000 cycles |
| Connections - terminals: | Power circuit: tunnel type terminals, bottom for 1 flexible wire(s) 4 mm²Power circuit: tunnel type terminals, bottom for 2 flexible wire(s) 1.5 mm²Power circuit: tunnel type terminals, bottom for 2 flexible with ferrule wire(s) 1.5 mm²Power circuit: tunnel type terminals, bottom for 2 rigid wire(s) 1.5 mm²Control circuit: tunnel type terminals, top for 2 flexible wire(s) 0.5...1.5 mm²Control circuit: tunnel type terminals, top for 2 flexible with ferrule wire(s) 0.5...1.5 mm²Control circuit: tunnel type terminals, top for 2 rigid wire(s) 0.5...1.5 mm² |
| Market segment: | Residential |
| IP degree of protection: | IP20 |
|---|---|
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481166340 |
|---|---|
| Substitution_texte: | Produit non disponible. |
