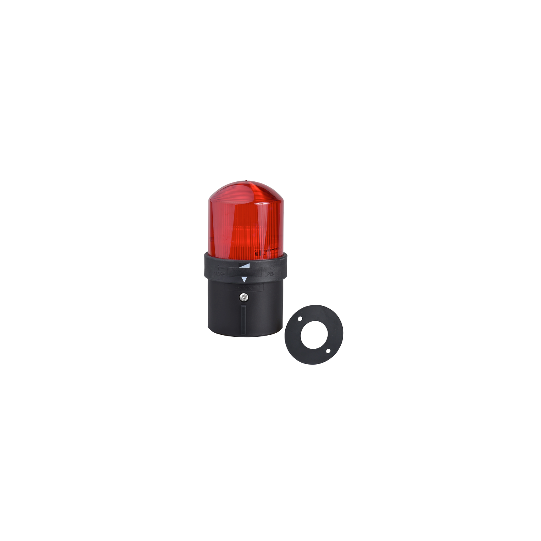

INDICATING BEACON 48VDC 10W +OPTIONS - XVBL4B4
SKU : XVBL4B4
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
INDICATING BEACON 48VDC 10W +OPTIONS - XVBL4B4
DESCRIPTION
| Range of product: | Harmony XVB Universal |
|---|---|
| Product or component type: | Complete beacon |
| Beacon or indicator bank unit type: | Base unit direct or tube fixingIlluminated unit |
| Signalling type: | Flashing |
| Mounting diameter: | 70 mm |
| Component name: | XVBL |
| Material: | Glass reinforced polyamide: base unitPolycarbonate: illuminated unit |
| Light source: | Bulb not included, red |
| Bulb type: | IncandescentIncandescent with BA 15d baseProtected LED |
| [Us] rated supply voltage: | 24 V AC24...48 V DC |
| Maximum power dissipation in W: | 7 W |
| Connections - terminals: | Screw clamp terminals, |
|---|---|
| [Ui] rated insulation voltage: | 250 V conforming to IEC 60947-1 |
| Nominal voltage limit: | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 60947-1 |
| Flashing frequency: | 1 Hz |
| CAD overall width: | 70 mm |
| CAD overall height: | 139 mm |
| CAD overall depth: | 70 mm |
| Terminals description ISO n°1: | (GND)GROUND(COM-1)PW |
| Net weight: | 0.28 kg |
| Pollution degree: | 2 |
|---|---|
| Product certifications: | CCCEACCSA C22-2 No 14UL 508 |
| Standards: | EN/IEC 60947-5-1 |
| Protective treatment: | TC |
| Ambient air temperature for storage: | -40...70 °C |
| Electrical shock protection class: | Class I on support tube conforming to IEC 61140Class II on base unit conforming to IEC 61140 |
| IP degree of protection: | IP65 on fixing base XVBZ0. conforming to IEC 60529IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection: | Type 4X conforming to UL (indoor) |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110844191 |
|---|
