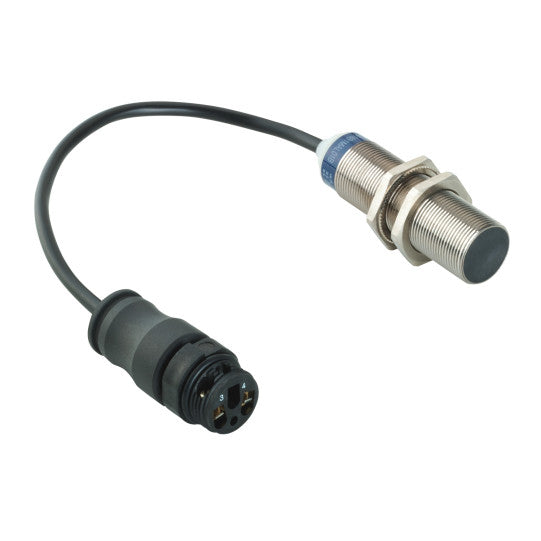

Inductive proximity sensors XS, inductive sensor XS5 M18, L62mm, brass, Sn5mm, 12...48 VDC, term. 0.15 m - Télémécanique - XS518B1DAL01B
DESCRIPTION
| Range of product: | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name: | General purpose |
| Sensor type: | Inductive proximity sensor |
| Device application: | - |
| Sensor name: | XS5 |
| Sensor design: | Cylindrical M18 |
| Size: | 56 mm |
| Body type: | Fixed |
| Detector flush mounting acceptance: | Flush mountable |
| Material: | Metal |
| Type of output signal: | Discrete |
| Wiring technique: | 2-wire |
| [Sn] nominal sensing distance: | 5 mm |
| Discrete output function: | 1 NO |
| Output circuit type: | DC |
| Electrical connection: | screw-clamp terminals remote male connector |
| Cable length: | 0.15 m |
| [Us] rated supply voltage: | 12...48 V DC |
| Switching capacity in mA: | 1.5...100 mA DC with overload and short-circuit protection |
| IP degree of protection: | IP68 double insulation conforming to IEC 60529IP69K conforming to DIN 40050 |
| Thread type: | M18 x 1 |
|---|---|
| Detection face: | Frontal |
| Front material: | PPS |
| Enclosure material: | Nickel plated brass |
| Sensing range: | > 4...8 mm |
| Operating zone: | 0...4 mm |
| Differential travel: | 1...15% of Sr |
| Cable composition: | 2 x 0.34 mm² |
| Wire insulation material: | PvR |
| Status LED: | Output state: 1 LED (yellow) |
| Supply voltage limits: | 10...58 V DC |
| Maximum residual current: | 0.5 mA open state |
| Switching frequency: | |
| Maximum voltage drop: | |
| Maximum delay first up: | 10 ms |
| Maximum delay response: | 0.15 ms |
| Maximum delay recovery: | 0.2 ms |
| Marking: | CE |
| Threaded length: | 52 mm |
| Height: | 18 mm |
| Length: | 62 mm |
| Product weight: | 0.12 kg |
| Ambient air temperature for operation: | -25...70 °C |
|---|---|
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 25 gn amplitude = +/- 2 mm (f = 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119026741 |
|---|
