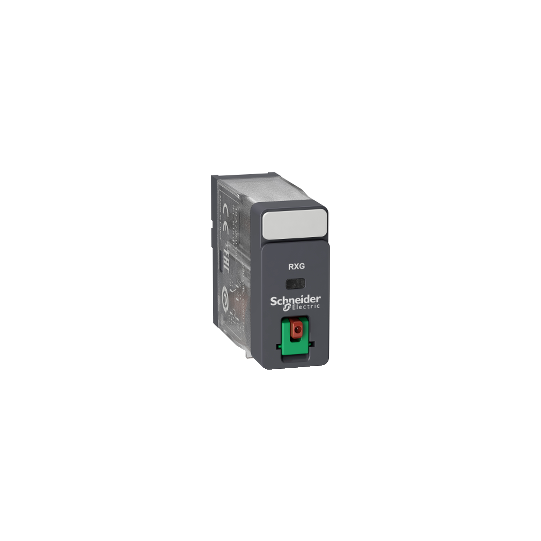

Interface plug-in relay, 10 A, 1 CO, lockable test button, 230 V AC - RXG11P7
SKU : RXG11P7
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Interface plug-in relay, 10 A, 1 CO, lockable test button, 230 V AC - RXG11P7
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | RXG series |
| Product or component type: | Plug-in relay |
| Relay type: | Interface relay |
| Contacts type and composition: | 1 C/O |
| [Uc] control circuit voltage: | 230 V |
| [Uc] control circuit voltage: | 230 V AC |
| Control circuit type: | AC |
| [In] rated current: | 10 A |
| [Ithe] conventional enclosed thermal current: | 10 A at -40...55 °C |
| Local signalling: | Flag |
| Status LED: | Without |
|---|---|
| [Ui] rated insulation voltage: | 250 V conforming to IEC300 V conforming to CSA300 V conforming to UL |
| Presentation of legend: | With |
| Maximum switching voltage: | 250 V AC30 V DC |
| Drop-out voltage threshold: | >= 0.3 Uc AC |
| Load current: | 10 A at 250 V AC |
| Minimum switching capacity: | 500 mW at 100 mA, 5 V DC |
| Maximum switching capacity: | 2500 VA |
| Control type: | Lockable test button |
| Contact resistance: | 100 mOhm |
| Insulation resistance: | 1000 MOhm at 500 V DC |
| Electrical insulation class: | Class F |
| Mechanical durability: | 10000000 cycles |
| Safety reliability data: | B10d = 100000 |
| Operating rate: | |
| Utilisation coefficient: | 20 % |
| Operating time: | 20 ms |
| Reset time: | 20 ms |
| Dielectric strength: | 1000 V AC between contacts with micro disconnection5000 V AC between coil and contact with reinforced insulation |
| Overvoltage category: | III |
| Protection category: | RT I |
| Pollution degree: | 2 |
| Test levels: | Level A group mounting |
| Device presentation: | Complete product |
| Contacts material: | Silver alloy (AgSnO2In2O3) |
| Shape of pin: | Flat (faston type) |
| Net weight: | 0.02 kg |
| Standards: | CSA C22.2 No 14IEC 61810-1UL 508 |
|---|---|
| Product certifications: | ULCEEACCSADNV-GL |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -40...70 °C |
| IP degree of protection: | IP40 |
| Relative humidity: | 10...85 % |
| Vibration resistance: | 3 gn, amplitude = +/- 0.75 mm (f = 10...150 Hz)in operation5 gn, amplitude = +/- 0.75 mm (f = 10...150 Hz)not in operation |
| Total lifecycle Carbon footprint: | 10 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3] |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480688591 |
|---|
