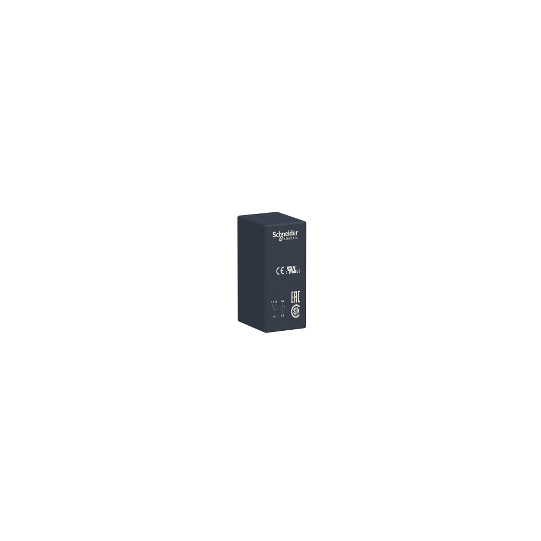

Interface plug-in relay, 12 A, 1 CO, 230 V AC - RSB1A120P7
SKU : RSB1A120P7
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Interface plug-in relay, 12 A, 1 CO, 230 V AC - RSB1A120P7
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | Interface relay |
| Product or component type: | Plug-in relay |
| Device short name: | RSB |
| Contacts type and composition: | 1 C/O |
| Contact operation: | Standard |
| [Uc] control circuit voltage: | 230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current: | 12 A at -40...40 °C |
| Status LED: | Without |
| Control type: | Without push-button |
| [Uc] control circuit voltage: | 230 V |
| [In] rated current: | 12 A |
| Shape of pin: | Flat (PCB type) |
|---|---|
| Average resistance: | 33000 Ohm network: AC at 20 °C +/- 10 % |
| [Ue] rated operational voltage: | 184...345 V AC 50/60 Hz |
| [Ui] rated insulation voltage: | 400 V conforming to EN/IEC 60947 |
| [Uimp] rated impulse withstand voltage: | 3.6 kV conforming to IEC 61000-4-5 |
| Contacts material: | Silver alloy (AgNi) |
| [Ie] rated operational current: | 12 A (AC-1/DC-1) NO conforming to IEC6 A (AC-1/DC-1) NC conforming to IEC |
| Minimum switching current: | 10 mA |
| Maximum switching voltage: | 300 V DC conforming to IEC |
| Switching voltage: | 12 V |
| Maximum switching capacity: | 3000 VA/336 W |
| Load current: | 12 A at 250 V AC12 A at 28 V DC |
| Minimum switching capacity: | 120 mW at 10 mA, 12 V |
| Operating rate: | |
| Mechanical durability: | 10000000 cycles |
| Electrical durability: | 100000 cycles, 12 A at 250 V, AC-1 NO100000 cycles, 6 A at 250 V, AC-1 NC |
| Operating time: | 20 ms operating20 ms reset |
| Marking: | CE |
| Average coil consumption: | 0.75 VA AC |
| Drop-out voltage threshold: | >= 0.15 Uc AC |
| Safety reliability data: | B10d = 100000 |
| Protection category: | RT I |
| Test levels: | Level A group mounting |
| Operating position: | Any position |
| Net weight: | 0.014 kg |
| Sale per indivisible quantity: | 10 |
| Device presentation: | Complete product |
| Compatibility code: | RSB |
| Dielectric strength: | 1000 V AC between contacts2500 V AC between poles5000 V AC between coil and contact |
|---|---|
| Standards: | CSA C22.2 No 14EN/IEC 61810-1UL 508 |
| Product certifications: | EACULCSA |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | +/- 1 mm (f= 10...55 Hz) conforming to EN/IEC 60068-2-6 |
| IP degree of protection: | IP40 conforming to EN/IEC 60529 |
| Shock resistance: | 10 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-275 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-27 |
| Ambient air temperature for operation: | -40...70 °C (AC) |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope)Toxic heavy metal free |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110257281 |
|---|
