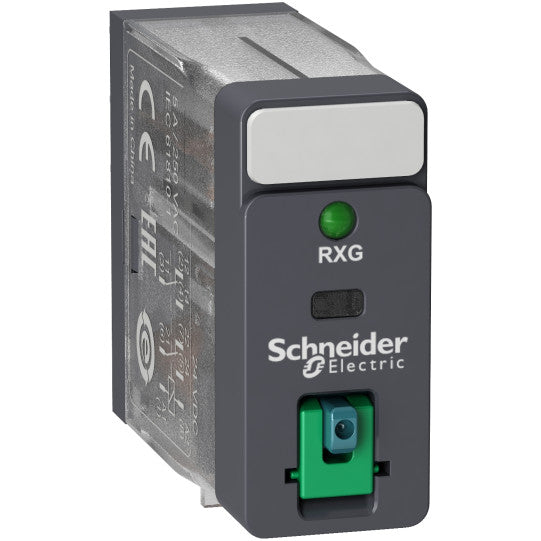

Interface plug-in relay, 5 A, 2 CO, lockable test button, LED, 24 V DC - RXG22BD
SKU : RXG22BD
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Interface plug-in relay, 5 A, 2 CO, lockable test button, LED, 24 V DC - RXG22BD
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | Interface relay |
| Product or component type: | Plug-in relay |
| Device short name: | RXG |
| Contacts type and composition: | 2 C/O |
| [Uc] control circuit voltage: | 24 V |
| [In] rated current: | 5 A |
| Status LED: | With |
|---|---|
| Contacts material: | Silver alloy (AgSnO2In2O3) |
| Contact resistance: | 100 mOhm |
| [Ithe] conventional enclosed thermal current: | 5 A at -40...55 °C |
| [Ie] rated operational current: | 5 A at 30 V (DC) conforming to UL5 A at 30 V (DC) conforming to IEC5 A at 250 V (AC) conforming to IEC5 A at 250 V (AC) conforming to UL |
| Maximum switching voltage: | 250 V AC30 V DC |
| Load current: | 5 A at 250 V AC |
| Maximum switching capacity: | 1250 VA |
| Minimum switching capacity: | 50 mW at 10 mA, 5 V DC |
| Operating rate: | |
| Utilisation coefficient: | 20 % |
| Mechanical durability: | 10000000 cycles |
| Electrical durability: | 100000 cycles for NO resistive load at 55 °C100000 cycles for NC resistive load at 55 °C |
| [Ui] rated insulation voltage: | 250 V conforming to IEC300 V conforming to CSA300 V conforming to UL |
| [Uimp] rated impulse withstand voltage: | 6 kV 1.2/50 µs |
| Dielectric strength: | 1000 V AC between contacts with micro disconnection5000 V AC between coil and contact with reinforced insulation3000 V AC between poles with basic insulation |
| Resistance: | 1100 Ohm +/- 10 % |
| Insulation resistance: | 1000 MOhm at 500 V DC |
| Test levels: | Level A group mounting |
| Mounting position: | Any position |
| Drop-out voltage threshold: | >= 0.1 Uc DC |
| Electrical insulation class: | Class F |
| Operating time: | 20 ms |
| Reset time: | 20 ms |
| [Uc] control circuit voltage: | 24 V DC |
| Safety reliability data: | B10d = 100000 |
| Colour of cover: | Standard |
| Control type: | Lockable test button |
| Local signalling: | Flag |
| Torque value: | 0.8 N.m |
| Product weight: | 0.02 kg |
| Device presentation: | Complete product |
| Vibration resistance: | 3 gn, amplitude = +/- 0.75 mm (f = 10...150 Hz)in operation5 gn, amplitude = +/- 0.75 mm (f = 10...150 Hz)not in operation |
|---|---|
| IP degree of protection: | IP40 |
| Shock resistance: | 20 gn in operation100 gn not in operation |
| Protection category: | RT I |
| Standards: | CSA C22.2 No 14UL 508IEC 61810-1 |
| Product certifications: | ULCECSAEAC |
| Pollution degree: | 2 |
| Overvoltage category: | III |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Relative humidity: | 10...85 % |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480689178 |
|---|
