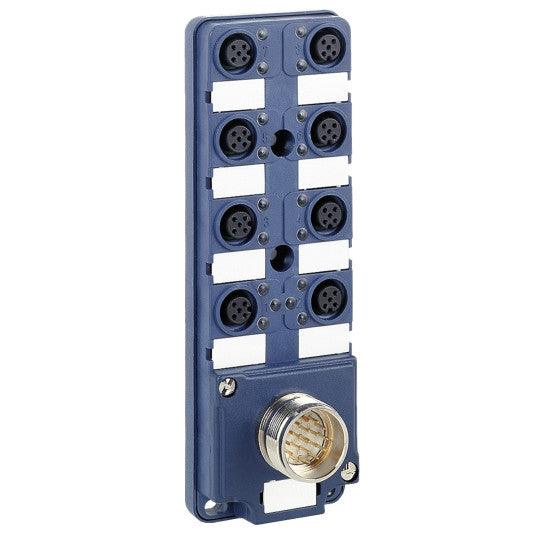

IP67 passive splitter box - cable 5 m - with 8 channels M12 connector - Led - ABE9C1281L05
DESCRIPTION
| Range of product: | Advantys ABE9 |
|---|---|
| Product or component type: | IP67 passive splitter box |
| Number of channels: | 8 |
| Electrical connection: | 1 pre-wired cable connector, 5 m cable length8 female connectors M12 5 pins |
| Status LED: | 1 LED per channel (yellow)channel status2 LEDs (green)power ON |
| Number of ways: | 16 ways |
|---|---|
| [Ue] rated operational voltage: | 24 V DC |
| Current per channel: | 4 A |
| Insulation group: | Category 3 conforming to VDE 0110 |
| Operating position: | Any position |
| Fixing mode: | M4 screw fixing |
| Contact resistance: | 5000 µOhm |
| Current of common: | 16 A 1 mm²12 A 0.75 mm² |
| Separation of commons: | Without or with |
| Product weight: | 1.61 kg |
| IP degree of protection: | IP67 conforming to IEC 529 |
|---|---|
| Product certifications: | cULus |
| Ambient air temperature for operation: | -20...80 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 0.2 gn (f= 57...150 Hz) conforming to IEC 68-2-6, FC tests |
| Shock resistance: | 30 gn for 11 ms conforming to EN 68-2-230 gn for 11 ms conforming to IEC 68-2-2 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110404616 |
|---|
