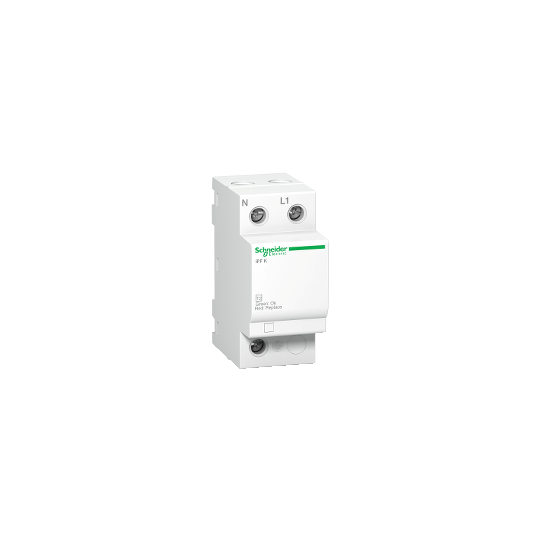

iPF K 20 modular surge arrester - 1 pole + N - 340V - A9L15692
SKU : A9L15692
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iPF K 20 modular surge arrester - 1 pole + N - 340V - A9L15692
DESCRIPTION
| Range of product: | IPF K |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 iPF K |
| Product or component type: | Surge arrester |
| Device short name: | IPF K |
| Device application: | Distribution |
| Poles description: | 1P + N |
| Remote signalling: | Without |
| Surge arrester type: | Electrical distribution network |
| Earthing system: | TN-STT |
| Surge arrester class type: | Type 2 |
|---|---|
| Surge arrester technology: | MOV + GDT |
| [Ue] rated operational voltage: | 230 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current: | Common mode: 5 kA (L/PE)Common mode: 5 kA (N/PE)Differential mode: 5 kA (L/N) |
| Maximum discharge current: | Common mode: 20 kA L/PECommon mode: 20 kA N/PEDifferential mode: 20 kA L/N |
| [Uc] maximum continuous operating voltage: | Common mode: 340 V L/PECommon mode: 260 V N/PEDifferential mode: 340 V L/N |
| Maximum [Up] voltage protection level: | Common mode Differential mode |
| [Ut] temporary overvoltage: | 337 V L/N 5 s withstand442 V L/PE 5 s withstand1200 V N/PE 200 ms withstand1453 V L/PE 200 ms withstand |
| Disconnector device type: | Associated circuit breaker iK60N 20 A curve C - Icu 6 kAAssociated fuse gG 25 A - Icu 25 kA |
| Short-circuit withstand: | 25 kA |
| Signalling circuit voltage: | 0.25 A/250 V AC 50/60 Hz |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 4 |
| Height: | 81 mm |
| Width: | 36 mm |
| Depth: | 69 mm |
| Product weight: | 210 g |
| Colour: | White (RAL 9003) |
| Response time: | |
| Residual current: | 0.003 mA |
| Connections - terminals: | Tunnel type terminal (top or bottom) 25 mm² rigidTunnel type terminal (top or bottom) 16 mm² flexibleTunnel type terminal (top or bottom) 16 mm² flexible with ferrule |
| Wire stripping length: | 11 mm |
| Tightening torque: | 3.5 N.m |
| Compatibility code: | IPF K 20 |
| Standards: | IEC 61643-11:2011 |
|---|---|
| Product certifications: | CEEAC |
| IP degree of protection: | IP40 on front face: conforming to IEC 60529IP20 on terminal: conforming to IEC 60529 |
| IK degree of protection: | IK03 conforming to IEC 62262 |
| Relative humidity: | 5...95 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480089916 |
|---|
