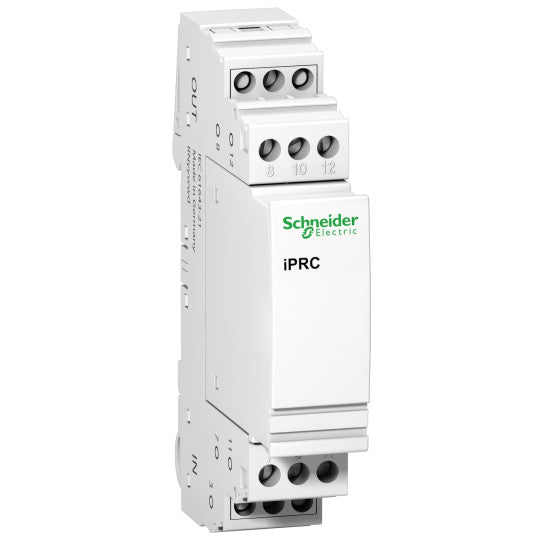

iPRC - 2 poles - 0.45 A - 130 V AC - A9L16337
DESCRIPTION
| Range of product: | IPRC |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 iPRC |
| Device short name: | IPRC |
| Product or component type: | Surge arrester |
| Number of protected lines: | 2 |
| Surge arrester type: | Telecom protection |
| Remote signalling: | Without |
|---|---|
| Surge arrester technology: | GDT + diode |
| [In] rated current: | 0.45 A at 45 °C |
| [Ue] rated operational voltage: | 130 V AC |
| Nominal discharge current: | Common mode: 10 kA (L/PE)Differential mode: 10 kA (L/N) |
| [Iimp] impulse current: | 100 A |
| [Uc] maximum continuous operating voltage: | Common mode: 130 V AC L/PECommon mode: 185 V DC L/PEDifferential mode: 130 V AC L/NDifferential mode: 185 V DC L/N |
| Maximum [Up] voltage protection level: | Differential mode Common mode |
| Output voltage limits: | Common mode: Differential mode: |
| [I total] discharge current: | 10 kA |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 2 |
| Height: | 90 mm |
| Width: | 18 mm |
| Depth: | 66 mm |
| Product weight: | 25 g |
| Colour: | White |
| Material: | PA6 |
| Response time: | |
| Connections - terminals: | Screw clamp terminal0.2...4 mm² rigidScrew clamp terminal0.2...2.5 mm² flexibleScrew clamp terminal0.2...2.5 mm² flexible with ferrule |
| Wire stripping length: | 8 mm |
| Tightening torque: | 0.8 N.m |
| Compatibility code: | IPRC |
| Standards: | EN 61643-21IEC 61643-21 |
|---|---|
| Product certifications: | xDSL compliance |
| IP degree of protection: | IP40 (modular enclosure) conforming to IEC 60529IP20 conforming to IEC 60529 |
| IK degree of protection: | IK05 conforming to IEC 62262 |
| Relative humidity: | 5...90 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606480383519 |
|---|
