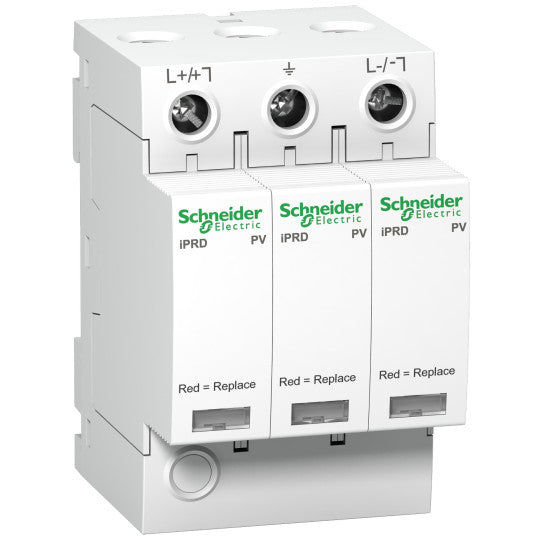

iPRD-DC 40r 800PV modular surge arrester - 2P - 840VDC - with remote transfert - A9L40271
SKU : A9L40271
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iPRD-DC 40r 800PV modular surge arrester - 2P - 840VDC - with remote transfert - A9L40271
DESCRIPTION
| Range of product: | IPRD-DC |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 iPRD PV-DC |
| Device short name: | IPRD PV-DC |
| Product or component type: | Surge arrester with pluggable cartridge |
| Poles description: | 2P |
| Output type: | Contact (volt-free) |
| Signal contacts composition: | 1 SD (1 C/O) |
| Surge arrester type: | Electrical distribution network |
| [Uoc] open circuit voltage: | 666 V |
| Surge arrester class type: | Type 2 |
|---|---|
| Surge arrester technology: | MOV |
| [Ue] rated operational voltage: | 800 V +/- 10 % DC |
| Nominal discharge current: | 15 kA |
| Maximum discharge current: | 40 kA |
| [Uc] maximum continuous operating voltage: | Differential mode: 800 V L+/L-Common mode: 800 V L+/PECommon mode: 800 V L-/PE |
| Maximum [Up] voltage protection level: | Differential mode Common mode Common mode |
| Disconnector device type: | Integrated disconnector |
| Local signalling: | White/red flag |
| Signalling circuit voltage: | AC: 250 V 50/60 Hz |
| Signalling output current: | 0.25 A |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 6 |
| Height: | 85 mm |
| Width: | 54 mm |
| Depth: | 69 mm |
| Product weight: | 400 g |
| Colour: | White (RAL 9003) |
| Response time: | |
| Connections - terminals: | Tunnel type terminal 2.5...25 mm² rigidTunnel type terminal 2.5...16 mm² flexibleTunnel type terminal 2.5...16 mm² flexible stranded |
| Wire stripping length: | 14 mm |
| Tightening torque: | 3.5 N.m |
| Compatibility code: | IPRD-DC 40r 600PV |
| Standards: | EN 50539-11:2013UTE C 61740-51 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP40 on front face: IP20 on terminal: |
| IK degree of protection: | IK03 |
| Relative humidity: | 5...95 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480506666 |
|---|
