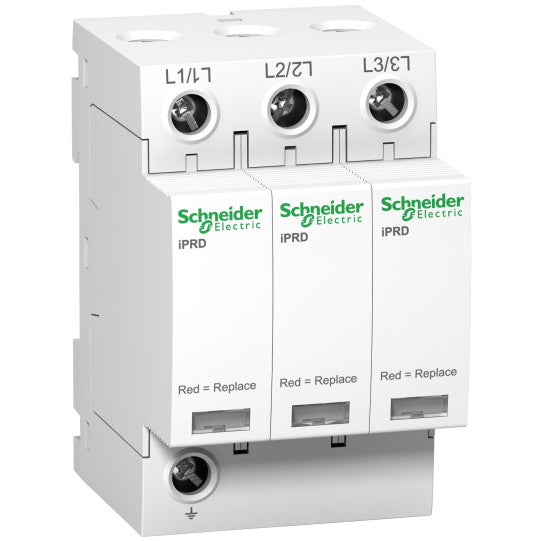

iPRD20 modular surge arrester - 3P - 350V - A9L20300
SKU : A9L20300
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iPRD20 modular surge arrester - 3P - 350V - A9L20300
DESCRIPTION
| Range of product: | IPRD |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 iPRD |
| Product or component type: | Surge arrester with pluggable cartridge |
| Device short name: | iPRD20 |
| Device application: | Distribution |
| Standards: | EN 61643-11:2012IEC 61643-11:2011 |
| Product certifications: | CE |
| Quality labels: | KEMA-KEURNF |
| Poles description: | 3P |
| Remote signalling: | Without |
| Surge arrester type: | Electrical distribution network |
| Earthing system: | TN-CIT 230 |
| Surge arrester class type: | Type 2 |
|---|---|
| Surge arrester technology: | MOV + GDT |
| [Ue] rated operational voltage: | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current: | Common mode: 5 kA (L/PE)Common mode: 5 kA (N/PE)Differential mode: 5 kA (L/N) |
| Maximum discharge current: | Common mode: 20 kA L/PECommon mode: 20 kA N/PEDifferential mode: 20 kA L/N |
| [Uc] maximum continuous operating voltage: | Common mode: 260 V N/PECommon mode: 350 V L/PEDifferential mode: 350 V L/N |
| Maximum [Up] voltage protection level: | Differential mode Common mode |
| [Ut] temporary overvoltage: | 337 V L/N 5 s withstand1200 V N/PE 200 ms safe failure mode |
| Disconnector device type: | Associated circuit breaker IC60N 20 A curve C - Icu 10 kAAssociated circuit breaker iC60H 20 A curve C - Icu 15 kAAssociated circuit breaker iC60L 20 A curve C - Icu 25 kAAssociated circuit breaker NG125H 63 A curve C - Icu 36 kAAssociated circuit breaker NG125L 63 A curve C - Icu 50 kAAssociated fuse gG 40 A - Icu 15 kAAssociated fuse gG 80 A - Icu 50 kA |
| Mounting mode: | Clip-on (DIN rail) |
| 9 mm pitches: | 6 |
| Height: | 85 mm |
| Width: | 54 mm |
| Depth: | 69 mm |
| Net weight: | 0.317 kg |
| Colour: | White (RAL 9003) |
| Residual current: | 0.6 mA0.003 mA |
| Connections - terminals: | Tunnel type terminal (downside) 2.5...35 mm²Tunnel type terminal (upside) 2.5...35 mm² |
| Tightening torque: | 2.5 N.m |
| Compatibility code: | IPRD20 |
| IK degree of protection: | IK03 conforming to IEC 62262 |
|---|---|
| Relative humidity: | 5...95 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480506475 |
|---|
