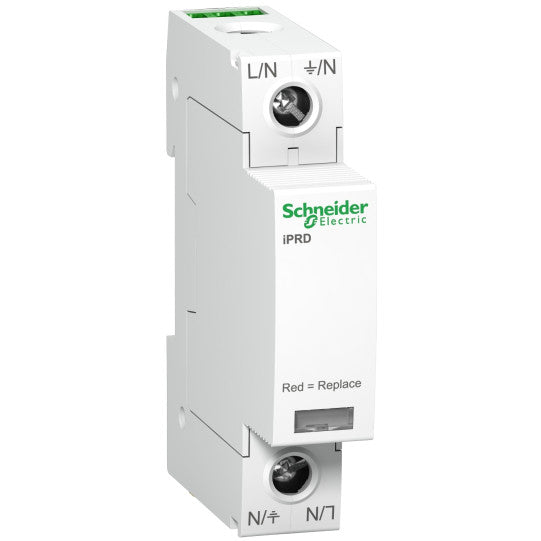

iPRD65r modular surge arrester - 1P - IT - 460V - with remote transfert - A9L65121
SKU : A9L65121
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iPRD65r modular surge arrester - 1P - IT - 460V - with remote transfert - A9L65121
DESCRIPTION
| Range of product: | IPRD |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 iPRD |
| Product or component type: | Surge arrester with pluggable cartridge |
| Device short name: | IPRD65r |
| Device application: | Distribution |
| Poles description: | 1P |
| Remote signalling: | With |
| Signal contacts composition: | 1 SD (1 C/O) |
| Surge arrester type: | Electrical distribution network |
| Earthing system: | IT |
| Surge arrester class type: | Type 2 |
|---|---|
| Surge arrester technology: | MOV |
| [Ue] rated operational voltage: | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current: | Common mode: 20 kA (L/PE) |
| Maximum discharge current: | Common mode: 65 kA L/PE |
| [Uc] maximum continuous operating voltage: | Common mode: 460 V L/PE |
| Maximum [Up] voltage protection level: | Common mode |
| [Ut] temporary overvoltage: | 337 V L/N 5 s withstand1455 V L/PE 200 ms safe failure mode1455 V N/PE 200 ms safe failure mode |
| Disconnector device type: | Associated circuit breaker iC60L 25 A curve C - Icu 25 kAAssociated circuit breaker NG125H 100 A curve C - Icu 36 kAAssociated circuit breaker NG125L 100 A curve C - Icu 50 kAAssociated fuse gG 80 A - Icu 50 kA |
| Short-circuit withstand: | 50 kA |
| Short-circuit withstand: | 5 kA 415 V Ph/Ph |
| Signalling circuit voltage: | 0.25 A/250 V AC 50/60 Hz |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 85 mm |
| Width: | 18 mm |
| Depth: | 69 mm |
| Product weight: | 119 g |
| Colour: | White (RAL 9003) |
| Response time: | |
| Residual current: | 0.6 mA |
| Connections - terminals: | Tunnel type terminal (top or bottom) 2.5...25 mm² rigidTunnel type terminal (top or bottom) 4...16 mm² flexibleTunnel type terminal (top or bottom) 4...16 mm² flexible with ferrule |
| Wire stripping length: | 14 mm |
| Tightening torque: | 3.5 N.m |
| Targeted country: | All |
| Compatibility code: | IPRD65r |
| Standards: | EN 61643-11:2012IEC 61643-11:2011 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP40 on front face: conforming to IEC 60529IP20 built-in: conforming to IEC 60529 |
| Relative humidity: | 5...95 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480801631 |
|---|
