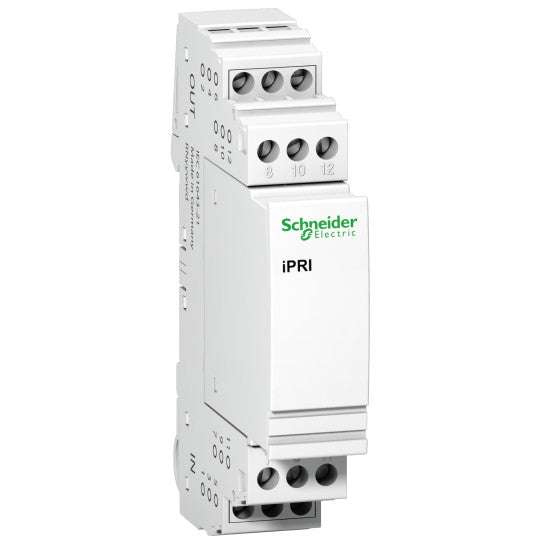

iPRI signal protection - 4 poles - 0.3A - 48 V - A9L16339
SKU : A9L16339
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iPRI signal protection - 4 poles - 0.3A - 48 V - A9L16339
DESCRIPTION
| Range of product: | IPRI |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 iPRI |
| Device short name: | IPRI |
| Product or component type: | Surge arrester |
| Number of protected lines: | 4 |
| Surge arrester type: | Signal protection |
| Remote signalling: | Without |
|---|---|
| Surge arrester technology: | GDT |
| [In] rated current: | 0.3 A at 45 °C |
| [Ue] rated operational voltage: | 48 V DC |
| Nominal discharge current: | Common mode: 20 kA (L/PE) |
| [Iimp] impulse current: | 70 A |
| [Uc] maximum continuous operating voltage: | Common mode: 37 V AC L/PECommon mode: 53 V DC L/PEDifferential mode: 37 V AC L/NDifferential mode: 53 V DC L/N |
| Maximum [Up] voltage protection level: | Common mode Differential mode |
| Output voltage limits: | Common mode: |
| [I total] discharge current: | 20 kA |
| Local signalling: | electrical |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 2 |
| Height: | 90 mm |
| Width: | 18 mm |
| Depth: | 66 mm |
| Product weight: | 65 g |
| Colour: | White |
| Material: | PA6 |
| Response time: | |
| Connections - terminals: | Screw clamp terminal0.2...4 mm² rigidScrew clamp terminal0.2...2.5 mm² flexibleScrew clamp terminal0.2...2.5 mm² flexible with ferrule |
| Wire stripping length: | 8 mm |
| Tightening torque: | 0.8 N.m |
| Compatibility code: | IPRI |
| Standards: | IEC 61643-21EN 61643-21 |
|---|---|
| IP degree of protection: | IP40 (modular enclosure) conforming to IEC 60529IP20 conforming to IEC 60529 |
| IK degree of protection: | IK05 conforming to IEC 62262 |
| Relative humidity: | 5...90 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606480383526 |
|---|
