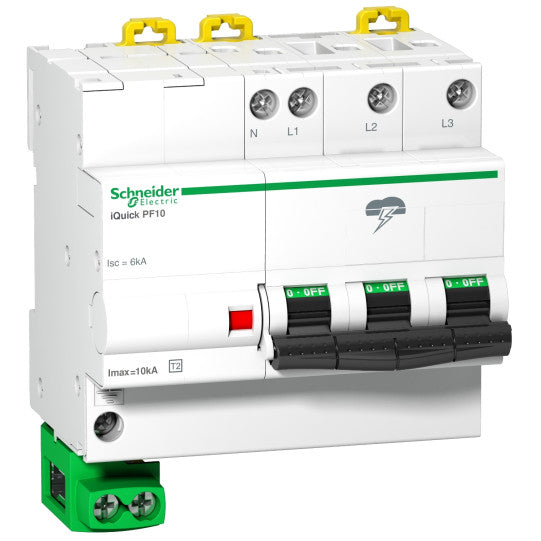

iQuick PF modular surge arrester - 3 poles + N - 275V - A9L16618
DESCRIPTION
| Range of product: | IQuick PF |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 PF |
| Product or component type: | Surge arrester |
| Device short name: | IQuick PF |
| Device application: | Distribution |
| Poles description: | 3P + N |
| Remote signalling: | Without |
| Surge arrester type: | Electrical distribution network |
| Earthing system: | TTTN-S |
| Surge arrester class type: | Type 2 |
|---|---|
| Surge arrester technology: | MOV + GDT |
| [Ue] rated operational voltage: | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current: | Common mode: 20 kA (N/PE)Differential mode: 5 kA (L/N) |
| Maximum discharge current: | Common mode: 20 kA N/PEDifferential mode: 10 kA L/N |
| [Uc] maximum continuous operating voltage: | Differential mode: 275 V L/NCommon mode: 275 V L/PE |
| Maximum [Up] voltage protection level: | Common mode Differential mode |
| [Ut] temporary overvoltage: | 337 V L/N 5 s withstand1200 V N/PE 200 ms safe failure mode442 V L/PE 5 s withstand |
| [If] follow current: | 0.1 kA common mode N/PE |
| Disconnector device type: | Integrated circuit breaker - Icu 6 kA |
| Short-circuit withstand: | 6 kA |
| Short-circuit withstand: | 6 kA |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 9.8 |
| Height: | 106.7 mm |
| Width: | 88.4 mm |
| Depth: | 74.1 mm |
| Product weight: | 640 g |
| Colour: | White (RAL 9003) |
| Response time: | |
| Residual current: | 1 mA |
| Connections - terminals: | Tunnel type terminal (L/N) 1...16 mm² rigidTunnel type terminal (ground) 10...25 mm² rigidTunnel type terminal (L/N) 1...16 mm² flexibleTunnel type terminal (ground) 10...25 mm² flexibleTunnel type terminal (L/N) 1...16 mm² flexible with ferruleTunnel type terminal (ground) 10...25 mm² flexible with ferrule |
| Wire stripping length: | 13 mm |
| Tightening torque: | 2 N.m |
| Compatibility code: | IQuick PF |
| Standards: | EN 61643-11:2012IEC 61643-11:2011 |
|---|---|
| Product certifications: | CE |
| Quality labels: | NF |
| IP degree of protection: | IP40 on front face: conforming to IEC 60529IP20 built-in: conforming to IEC 60529 |
| IK degree of protection: | IK03 conforming to IEC 62262 |
| Relative humidity: | 5...95 % |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480387197 |
|---|
