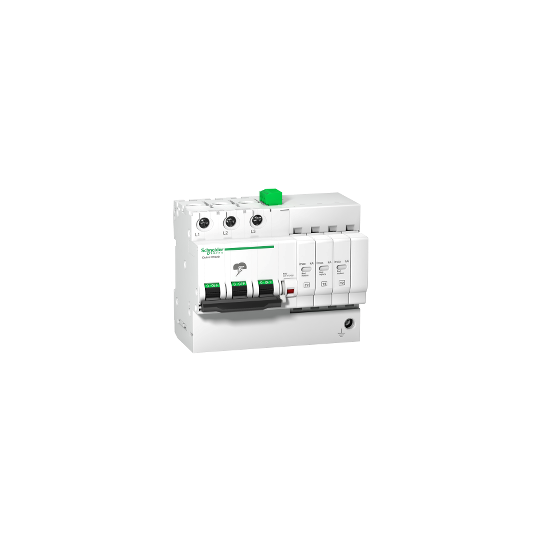

iQuick PRD8r modular surge arrester - 3 poles - 350V - with remote transfer - A9L16299
SKU : A9L16299
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iQuick PRD8r modular surge arrester - 3 poles - 350V - with remote transfer - A9L16299
DESCRIPTION
| Range of product: | IQuick PRD |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 iQuick PRD |
| Product or component type: | Surge arrester with pluggable cartridge |
| Device short name: | iQuick PRD8r |
| Device application: | Distribution |
| Standards: | EN 61643-11:2012IEC 61643-11:2011 |
| Product certifications: | CE |
| Quality labels: | NFKEMA-KEUR |
| Poles description: | 3P |
| Remote signalling: | With |
| Signal contacts composition: | 1 SD (1 C/O) |
| Surge arrester type: | Electrical distribution network |
| Earthing system: | TN-CIT 230 |
| Surge arrester class type: | Type 2 + 3 |
|---|---|
| Surge arrester technology: | MOV |
| [Ue] rated operational voltage: | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Nominal discharge current: | Common mode: 2 kA (L/PE)Differential mode: 2 kA (L/N) |
| Maximum discharge current: | Common mode: 8 kA L/PE |
| [Uoc] open circuit voltage: | 10 kV type 3 common mode L/PE |
| [Uc] maximum continuous operating voltage: | Common mode: 350 V L/PE |
| Maximum [Up] voltage protection level: | Common mode Common mode |
| Disconnector device type: | Integrated circuit breaker - Icu 25 kA |
| Signalling circuit voltage: | 2 A/250 V AC 50/60 Hz |
| Mounting mode: | Clip-on (DIN rail) |
| 9 mm pitches: | 12.7 |
| Height: | 94 mm |
| Width: | 113.6 mm |
| Depth: | 75.9 mm |
| Net weight: | 0.67 kg |
| Colour: | White (RAL 9003) |
| Connections - terminals: | Tunnel type terminal (downside) 2.5...25 mm²Tunnel type terminal (upside) 2.5...25 mm² |
| Tightening torque: | 2.5 N.m |
| Compatibility code: | IQuick PRD8r |
| IK degree of protection: | IK05 conforming to IEC 62262 |
|---|---|
| Relative humidity: | 5...90 % |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480387111 |
|---|
