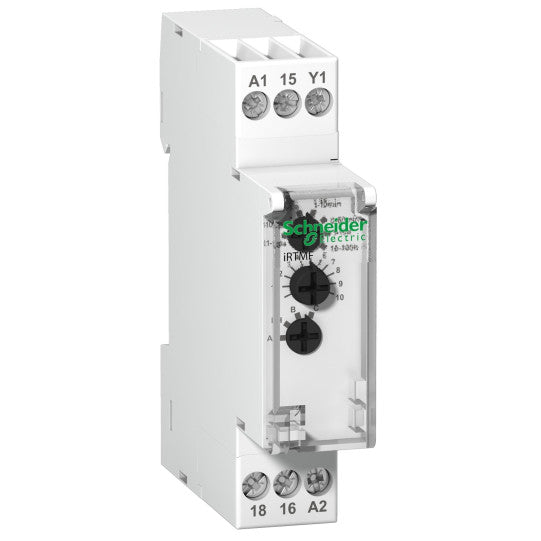

iRTMF multifunction time delay relay - 1 OC - 12-240 VAC/DC - A9E16070
SKU : A9E16070
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
iRTMF multifunction time delay relay - 1 OC - 12-240 VAC/DC - A9E16070
DESCRIPTION
| Relay application: | Time delay relay |
|---|---|
| Time delay type: | Multifunction |
| Range: | Acti 9 |
| Product name: | IRT |
| Product or component type: | Relay |
| Device short name: | IRTMF |
| Signal contacts composition: | 1 C/O |
| [Ie] rated operational current: | 8 A at 250 V AC8 A at 250 V DC0.01 A at 5 V DC |
|---|---|
| Impulse duration: | > 100 ms |
| Local signalling: | LED, flashing for time delay |
| Type of setting: | A B C or H: 4 time delay types selectionRotary knob: time delay configuration |
| Time delay range: | 0.1...360000 s |
| Accuracy error: | +/- 10 % |
| Repeat accuracy: | +/- 0.5 % |
| [Uc] control circuit voltage: | 12...240 V AC 50/60 Hz12...240 V DC |
| [Us] rated supply voltage: | 12...240 V AC at 50/60 Hz12...240 V DC |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 2 |
| Height: | 93 mm |
| Width: | 18 mm |
| Depth: | 72 mm |
| Product weight: | 0.065 kg |
| Colour: | White |
| Mechanical durability: | 5000000 cycles |
| Electrical durability: | AC-1: 100000 cycles |
| Undervoltage behaviour: | 100 ms |
| Connections - terminals: | Tunnel type terminals for 2 cable(s) 1.5 mm² flexible with cable endTunnel type terminals for 2 cable(s) 1.5 mm² flexible without cable endTunnel type terminals for 2 cable(s) 2.5 mm² rigid with cable endTunnel type terminals for 2 cable(s) 2.5 mm² rigid without cable end |
| Market segment: | Small commercialResidential |
| Compatibility code: | IRTMF |
| IP degree of protection: | IP20 |
|---|---|
| Immunity to microbreaks: | 20 ms |
| Ambient air temperature for operation: | -5...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480377464 |
|---|
