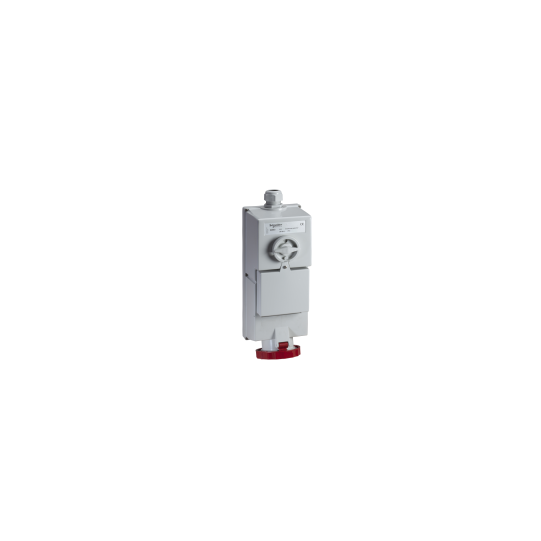

Isoblock interlocked socket - 63 A - 3P + N + E - 380...415 V AC - IP65 - wall - 82883
SKU : 82883
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Isoblock interlocked socket - 63 A - 3P + N + E - 380...415 V AC - IP65 - wall - 82883
DESCRIPTION
| Range: | PratiKa |
|---|---|
| Range of product: | PratiKa |
| Product name: | Isoblock socket |
| Product or component type: | Interlocked socket |
| Device short name: | Isoblock socket |
| Plug, socket category: | Low voltage |
| Industrial socket type: | B32/63 |
| Poles description: | 3P + N + E |
| Network type: | AC |
| Outlet standard: | Industrial |
| Mounting mode: | Wall-mounted |
|---|---|
| [In] rated current: | 63 A |
| [Ue] rated operational voltage: | 380...415 V |
| Network frequency: | 50/60 Hz |
| Ground lug clockwise position: | 6 h |
| Protection type: | Fuse |
| Fuse type: | Diazed |
| Fuse size: | E33 |
| Plug, socket material: | Housing: self-extinguishing engineering polymer |
| Contacts material: | Pins: stainless steelSprings: stainless steel |
| Connections - terminals: | Captive screws |
| Maximum cable cross section: | 16 mm² |
| Maximum cable outer diameter: | 25 mm |
| Cable entry: | Cable gland |
| Thread type: | Pg 29 |
| Net weight: | 3.097 kg |
| Base dimension: | 144 x 389 mm |
| Height: | 389 mm |
| Width: | 144 mm |
| Depth: | 147 mm |
| Colour: | Grey (RAL 7035) |
| Voltage colour: | Red |
| Compatibility code: | Isoblock socket |
| Standards: | IEC 60309-2IEC 60309-1 |
|---|---|
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK10 conforming to EN 62262 |
| Fire resistance: | 850 °C conforming to IEC 60695-2-11 |
| Relative humidity: | 50 % at 40 °C70 % at 30 °C90 % at 20 °C |
| Ambient air temperature for operation: | 35 °C ( 86400 s ) -25...40 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3303430828839 |
|---|
