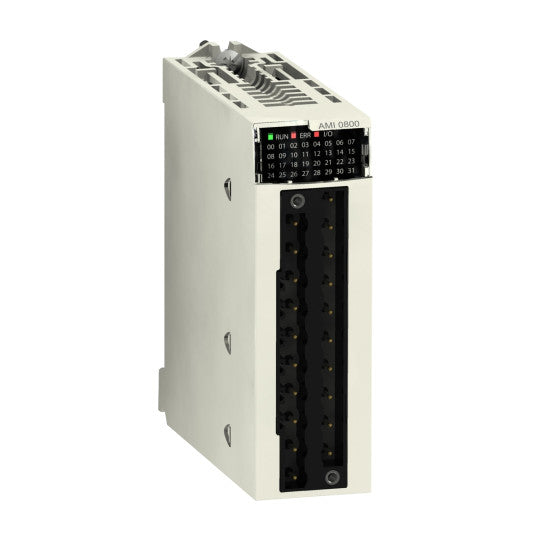

isolated analog input module X80 - 8 inputs - high speed -for severe environment - BMXAMI0810H
SKU : BMXAMI0810H
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
isolated analog input module X80 - 8 inputs - high speed -for severe environment - BMXAMI0810H
DESCRIPTION
| Range of product: | Modicon X80 |
|---|---|
| Product or component type: | Analog input module |
| Product specific application: | For severe environments |
| Electrical connection: | 28 ways 1 connector |
| Input output isolation: | Isolated |
| Input level: | High level |
| Analogue input number: | 8 |
| Analogue input type: | Current +/- 20 mACurrent 0...20 mACurrent 4...20 mAVoltage +/- 10 VVoltage +/- 5 VVoltage 0...10 VVoltage 0...5 VVoltage 1...5 V |
| Analog/digital conversion: | 16 bits |
|---|---|
| Analogue input resolution: | 15 bits + sign |
| Permitted overload on inputs: | +/- 30 mA 0...20 mA+/- 30 mA 4...20 mA+/- 30 V +/- 10 V+/- 30 V +/- 5 V+/- 30 V 0...10 V+/- 30 V 0...5 V+/- 30 V 1...5 V+/- 30 mA +/- 20 mA |
| Input impedance: | 10 MOhm in voltage mode250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
| Precision of internal conversion resistor: | 0.1 % - 15 ppm/°C |
| Type of filter: | First order digital filtering |
| Fast read cycle time: | 1 ms + 1 ms x number of channels used |
| Nominal read cycle time: | 9 ms for 8 channels |
| Measurement error: | 0.15 % of full scale +/- 20 mA 25 °C0.15 % of full scale 0...20 mA 25 °C0.15 % of full scale 4...20 mA 25 °C0.075 % of full scale +/- 10 V 25 °C0.075 % of full scale 0...10 V 25 °C0.075 % of full scale 0...5 V 25 °C0.075 % of full scale 1...5 V 25 °C0.075 % of full scale +/- 5 V 25 °C |
| Temperature drift: | 30 ppm/°C +/- 10 V30 ppm/°C +/- 5 V30 ppm/°C 0...10 V30 ppm/°C 0...5 V30 ppm/°C 1...5 V50 ppm/°C +/- 20 mA50 ppm/°C 0...20 mA50 ppm/°C 4...20 mA |
| Minimum crosstalk attenuation: | 80 dB |
| Common mode rejection: | 80 dB |
| Digital value format: | - 32768 to + 32767 in maximum user scale+/- 10000 by default |
| Isolation voltage: | 300 V DC between channels1400 V DC between channels and ground1400 V DC between channels and bus |
| Measurement resolution: | 0.36 mV +/- 10 V0.36 mV 0...10 V0.36 mV 0...5 V0.36 mV 1...5 V0.36 mV +/- 5 V1.4 µA +/- 20 mA1.4 µA 0...20 mA1.4 µA 4...20 mA |
| Maximum conversion value: | +/- 11.4 V +/- 10 V+/- 11.4 V 0...10 V+/- 11.4 V 0...5 V+/- 11.4 V 1...5 V0...30 mA +/- 20 mA0...30 mA 0...20 mA0...30 mA 4...20 mA0...30 mA +/- 5 V |
| Operating altitude: | 0...2000 m2000...5000 m with derating factor |
| Status LED: | 1 LED (green)RUN1 LED per channel (green)channel diagnostic1 LED (red)ERR1 LED (red)I/O |
| Product weight: | 0.175 kg |
| Power consumption in W: | 1.06 W 24 V DC typical1.50 W 24 V DC maximum0.32 W 3.3 V DC typical0.48 W 3.3 V DC maximum |
| Vibration resistance: | 3 gn |
|---|---|
| Shock resistance: | 30 gn |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Relative humidity: | 5...95 % at 55 °C without condensation |
| IP degree of protection: | IP20 |
| Directives: | 2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility |
| Product certifications: | CERCMCSAEACMerchant NavyULATEXIEC-Ex |
| Standards: | EN/IEC 61010-2-201EN/IEC 61131-2UL 61010-2-201CSA C22.2 No 61010-2-201 |
| Environmental characteristic: | Gas resistant class GxGas resistant class 3C4Dust resistant class 3S4Sand resistant class 3S4Salt resistant level 2Mold growth resistant class 3B2Fungal spore resistant class 3B2Hazardous location |
| Protective treatment: | Conformal coating |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3595864156620 |
|---|
