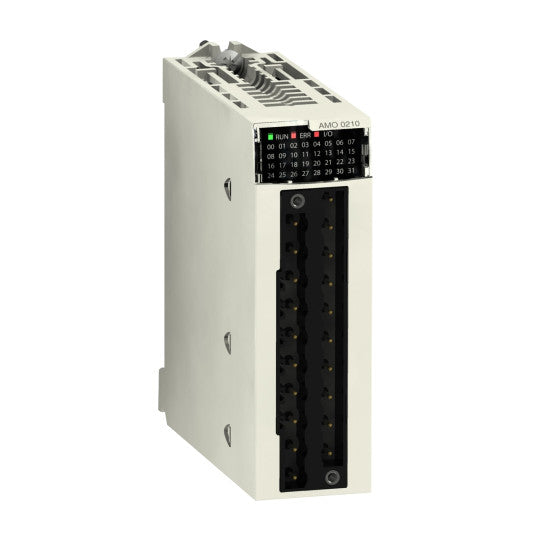

isolated analog output module X80 - 2 outputs - BMXAMO0210
SKU : BMXAMO0210
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
isolated analog output module X80 - 2 outputs - BMXAMO0210
DESCRIPTION
| Range of product: | Modicon X80 |
|---|---|
| Product or component type: | Analog output module |
| Electrical connection: | 20 ways 1 connector |
| Input output isolation: | Isolated |
| Measurement error: | 0.1 % of full scale 25 °C |
|---|---|
| Temperature drift: | 30 ppm/°C |
| Recalibration: | Factory calibrated |
| Minimum crosstalk attenuation: | 90 dB |
| Common mode rejection: | 100 dB |
| Isolation voltage: | 1400 V DC between channels and ground1400 V DC between channels and bus750 V DC between channels |
| Detection type: | Open circuit 0...20 mAOpen circuit 4...20 mAShort circuit +/- 10 V |
| Load impedance ohmic: | >= 1000 Ohm +/- 10 V |
| Output level: | High level |
| Analogue output number: | 2 |
| Analogue output type: | Current: 0...20 mACurrent: 4...20 mAVoltage: +/- 10 V |
| Analogue output resolution: | 15 bits + sign |
| Supply: | Internal power supply via rack |
| Conversion time: | |
| Maximum conversion value: | +/- 11.25 V +/- 10 V0...24 mA 0...20 mA0...24 mA 4...20 mA |
| Fallback mode: | PredefinedConfigurable |
| Operating altitude: | 0...2000 m2000...5000 m with derating factor |
| Status LED: | 1 LED (green)RUN1 LED per channel (green)channel diagnostic1 LED (red)ERR1 LED (red)I/O |
| Product weight: | 0.144 kg |
| Power consumption in W: | 2.1 W 24 V DC typical2.8 W 24 V DC maximum0.35 W 3.3 V DC typical0.48 W 3.3 V DC maximum |
| Vibration resistance: | 3 gn |
|---|---|
| Shock resistance: | 30 gn |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | 0...60 °C |
| Relative humidity: | 5...95 % at 55 °C without condensation |
| IP degree of protection: | IP20 |
| Directives: | 2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility |
| Product certifications: | CERCMCSAEACMerchant NavyUL |
| Standards: | EN/IEC 61010-2-201EN/IEC 61131-2UL 61010-2-201CSA C22.2 No 61010-2-201 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3595863910209 |
|---|
