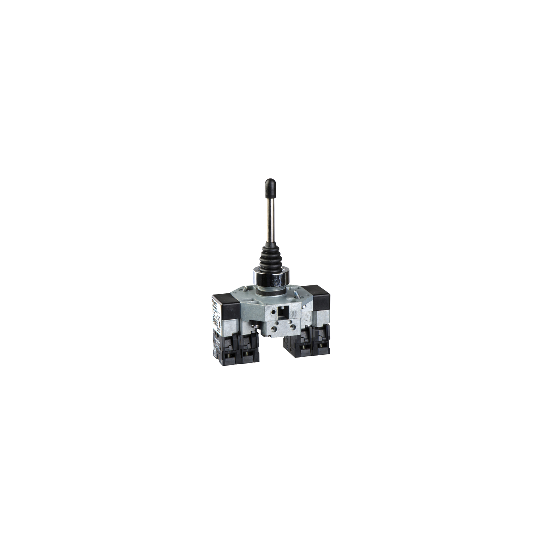

JOYSTICK 22MM XD2 +OPTIONS - XD2GA8241
SKU : XD2GA8241
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
JOYSTICK 22MM XD2 +OPTIONS - XD2GA8241
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Complete joystick controller |
| Device short name: | XD2 |
| Mounting diameter: | 22 mm |
| Bezel material: | Chromium plated metal |
| [Ie] rated operational current: | 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-13 A at 240 V, AC-15, A300 |
|---|---|
| [Ui] rated insulation voltage: | 500 V (pollution degree 3) conforming to EN/IEC 60947-1600 V (pollution degree 3) conforming to UL 508600 V (pollution degree 3) conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| Operator position information: | All positions |
| Notch per direction: | 2 |
| Operator direction information: | 2 directions |
| Contacts type and composition: | 2 NO for slow-break |
| Short-circuit protection: | 10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1 |
| Connections - terminals: | Captive screw clamp terminals, 1 x 0.5 mm²Captive screw clamp terminals, 2 x 1.5 mm² with or without cable endFaston connectors, connection size: 6.3 mm |
| Electrical durability: | 1000000 cycles, AC-15 at 230 V, operating rate 1000000 cycles, AC-15 at 127 V, operating rate 1000000 cycles, AC-15 at 24...48 V, operating rate 1000000 cycles, DC-13 at 24 V, operating rate 1000000 cycles, DC-13 at 48 V, operating rate 1000000 cycles, DC-13 at 120 V, operating rate |
| Electrical reliability: | ? |
| Contact code designation: | A600-Q600 |
| Overvoltage category: | Class I conforming to IEC 61140 |
| Mechanical durability: | 1000000 cycles |
| Fixing center: | 90 x 90 mm |
| Return: | to 0 position |
| Height: | 145 mm |
| Depth: | 60 mm |
| Product weight: | 0.5 kg |
| Compatibility code: | XD2 |
| Standards: | EN/IEC 60947-5-1 |
|---|---|
| Product certifications: | CSALROS (Lloyds register of shipping) |
| Protective treatment: | TC |
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Vibration resistance: | 5 gn (f= 40...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 20 gn conforming to IEC 60068-2-27 |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110611410 |
|---|
