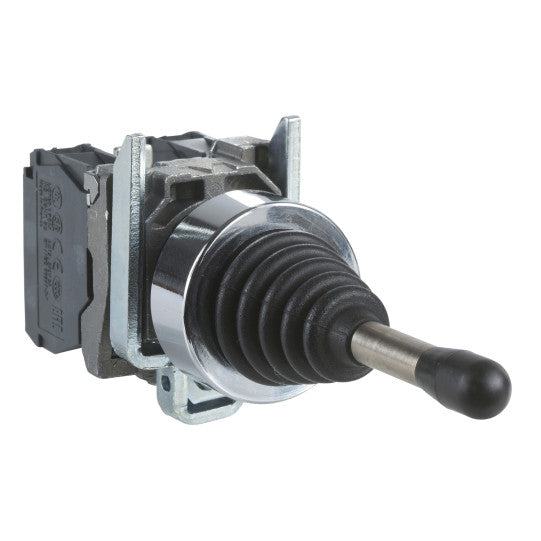

joystick controller Ø22 2-direction spring return 1NO per direction - XD5PA22
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Joystick controller |
| Device short name: | XD5 |
| Bezel material: | Plastic |
| Fixing collar material: | Plastic |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | To 0 position spring return |
| Operator profile: | 54 mm long operating shaft |
| Operator position information: | 3 positions |
| Operator direction information: | 2 directions |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Height: | 47 mm |
|---|---|
| Width: | 30 mm |
| Depth: | 108 mm |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Notch per direction: | 1 |
| Contacts type and composition: | 1 NO |
| Contact operation: | Slow-break |
| Contacts usage: | Standard |
| Positive opening: | Without |
| Mechanical durability: | 1000000 cycles |
| Device presentation: | Complete product |
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Compatibility code: | XD5 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN 60947-1 |
| [Ie] rated operational current: | 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-10.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, AC-15, 3 A at 120 V, operating rate 1000000 cycles, AC-15, 4 A at 24 V, operating rate 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Electrical shock protection class: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Standards: | EN/IEC 60947-1CSA C22.2 No 14EN/IEC 60947-5-1JIS C8201-5-1EN/IEC 60947-5-4UL 508JIS C8201-1 |
| Product certifications: | DNVCSALROS (Lloyds register of shipping)BVGLUL listed |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110904291 |
|---|
