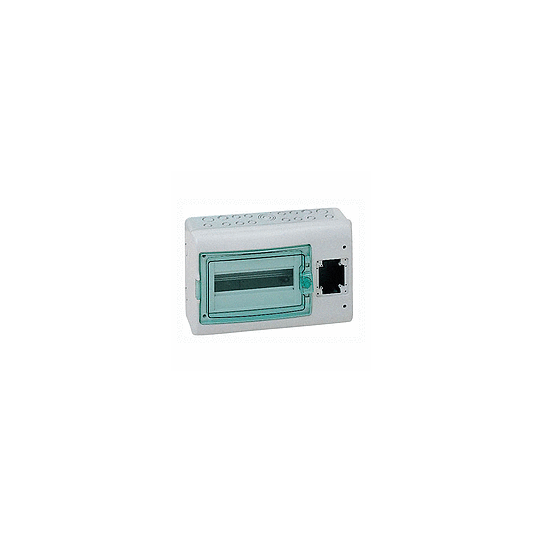

Kaedra - coffret polyvalent - 448 x 280 mm - 12 modules - 1 ouverture - 13990
DESCRIPTION
| Range: | Kaedra |
|---|---|
| Product or component type: | Weatherproof enclosure |
| Enclosure type: | Enclosure for modular device with interface |
| Accessories included with enclosure: | 1 marking kit1 plate for push-button controls1 wiring strap1 terminal block 16 holes1 terminal block support |
| Enclosure mounting: | Surface |
|---|---|
| Number of 18 mm modules per row: | 12 |
| Total number of 18 mm modules: | 12 |
| Number of horizontal rows: | 1 |
| Electrical insulation class: | Double insulationClass II |
| Number of openings of interface: | 1 |
| Number of plates: | 1 for push-button controls |
| Provided equipment: | 1 marking kit1 wiring strap1 plate for push-button control1 terminal block support1 terminal block 16 holes |
| Type of front cover: | TransparentReversible |
| Power dissipation in W: | 28 W |
| [In] rated current: | 90 A |
| Type of rail: | DIN |
| Number of pre-cutouts PG ISO: | 17 |
| Number of terminal blocks: | 1 with 16 outgoers |
| Locking options description: | Optional keylock |
| Enclosure material: | Self-extinguishing polymer |
| Base dimension: | 90 x 100 mm |
| Width: | 448 mm |
| Height: | 280 mm |
| Depth: | 160 mm |
| Colour: | Door |
| Standards: | IEC 670EN 50102IEC 60439-3EN 50262IEC 60529 |
|---|---|
| Fire resistance: | 750 °C conforming to IEC 60695-2-1 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK09 conforming to EN 50102 |
| Environmental characteristic: | UV resistant class 3 conforming to ISO 4582 2010Ultraviolet degradation test conforming to ISO 4892-2 2013 |
| Overvoltage category: | II |
| Ambient air temperature for operation: | -25...60 °C |
| Warranty period: | 18 months |
| Code EAN: | 3303430139904 |
|---|---|
| Contexte: |
Complete range of weatherproof enclosures IP65
|
