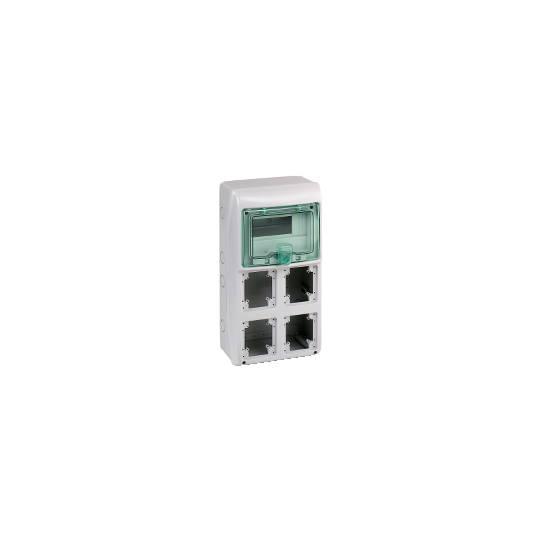

Kaedra - for power outlet - 4 openings - 1 x 8 modules - 13179
DESCRIPTION
| Range of product: | Kaedra |
|---|---|
| Range: | Kaedra |
| Product or component type: | Weatherproof enclosure |
| Enclosure type: | Enclosure for power outlet |
| Accessories included with enclosure: | 2 wiring straps1 plate for push-button controls4 plates for 65 x 85 power outlets |
| Mounting plate description: | Without mounting plate |
| Enclosure mounting: | Surface |
|---|---|
| 9 mm pitches: | 16 |
| Number of 18 mm modules per row: | 8 |
| Total number of 18 mm modules: | 8 |
| Number of horizontal rows: | 1 |
| Electrical insulation class: | Double insulationClass II |
| Number of openings of interface: | 4 |
| Number of plates: | 1 for push-button controls4 for 65 x 85 power outlets |
| Provided equipment: | 2 wiring strap1 plate for push-button control4 plate for 65 x 85 power outlet |
| Type of front cover: | Transparent |
| Power dissipation in W: | 15 W |
| [In] rated current: | 63 A |
| Type of rail: | DIN |
| Number of pre-cutouts PG ISO: | 7 |
| Number of terminal blocks: | 1 with 8 outgoers |
| Distribution block outgoers: | 4 x 10 mm²4 x 16 mm² |
| Locking options description: | Optional keylock |
| Enclosure material: | Housing: self-extinguishing polymer |
| Product weight: | 2 kg |
| Base dimension: | 90 x 100 mm |
| Width: | 236 mm |
| Height: | 460 mm |
| Depth: | 160 mm |
| Internal depth: | 91 mm |
| Colour: | Door: transparent greenEnclosure: light grey (RAL 7035) |
| Market segment: | ResidentialSmall commercial |
| Standards: | EN 62262IEC 60439-3EN 50262IEC 60695-2-1IEC 60529IEC 670 |
|---|---|
| Fire resistance: | 650 °C conforming to IEC 60695-2-1 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK09 conforming to EN 50102 |
| Environmental characteristic: | UV resistant: class 3 conforming to ISO 4582:2010Ultraviolet degradation test conforming to ISO 4892-2:2013 |
| Overvoltage category: | II |
| Ambient air temperature for operation: | -25...40 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430131793 |
|---|
