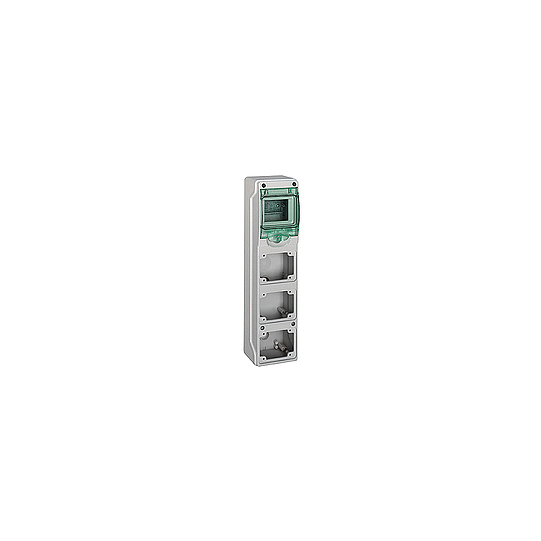

Kaedra - mini coffret pour prises - 98 x 392 mm - 4 modules - 3 ouvertures - 13177
SKU : 13177
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Kaedra - mini coffret pour prises - 98 x 392 mm - 4 modules - 3 ouvertures - 13177
DESCRIPTION
| Range: | Kaedra |
|---|---|
| Product or component type: | Weatherproof enclosure |
| Enclosure type: | Enclosure for plug and socket |
| Accessories included with enclosure: | 1 plate for 50 x 50 power outlets1 terminal block 4 holes |
| Enclosure mounting: | Surface |
|---|---|
| Number of 18 mm modules per row: | 4 |
| Total number of 18 mm modules: | 4 |
| Number of horizontal rows: | 1 |
| Electrical insulation class: | Double insulationClass II |
| Number of openings of interface: | 3 |
| Number of plates: | 1 for 50 x 50 power outlets |
| Provided equipment: | 1 plate for 50 x 50 power outlet1 terminal block 4 holes |
| Type of front cover: | Transparent |
| Power dissipation in W: | 6.5 W |
| [In] rated current: | 63 A |
| Number of pre-cutouts PG ISO: | 1 |
| Number of terminal blocks: | 1 with 4 outgoers |
| Distribution block outgoers: | 2 x 10 mm²2 x 16 mm² |
| Locking options description: | Optional keylock |
| Enclosure material: | Self-extinguishing polymer |
| Base dimension: | 65 x 85 mm |
| Width: | 98 mm |
| Height: | 392 mm |
| Depth: | 98.5 mm |
| Colour: | Door |
| Standards: | IEC 60529IEC 670EN 50262EN 50102IEC 60439-3 |
|---|---|
| Fire resistance: | 750 °C conforming to IEC 60695-2-1 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK09 conforming to EN 50102 |
| Environmental characteristic: | UV resistant class 3 conforming to ISO 4582 2010Ultraviolet degradation test conforming to ISO 4892-2 2013 |
| Overvoltage category: | II |
| Ambient air temperature for operation: | -25...60 °C |
| Warranty period: | 18 months |
| Code EAN: | 3303430131779 |
|---|---|
