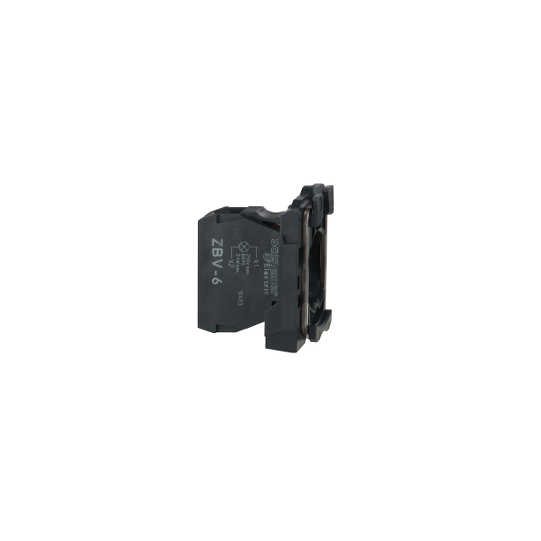

light block for head Ø22 for BA9s bulb 250V screw clamp terminals - ZBV6
SKU : ZBV6
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
light block for head Ø22 for BA9s bulb 250V screw clamp terminals - ZBV6
DESCRIPTION
| Range of product: | Harmony XB5Harmony XB4 |
|---|---|
| Product or component type: | Light block |
| Device short name: | ZBV |
| Sale per indivisible quantity: | 1 |
| Connections - terminals: | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Signalling type: | Steady |
| Light source: | Bulb not included |
| Bulb base: | BA 9s |
| Light block supply: | Direct |
| [Us] rated supply voltage: | <= 250 V |
| Product weight: | 0.016 kg |
|---|---|
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| Mounting of block: | Front mounting |
| Electrical composition code: | M7M8MF2P3PF2 |
| Device presentation: | Basic element |
| Compatibility code: | ZBV |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Standards: | EN/IEC 60947-1EN/IEC 60947-5-4JIS C8201-5-1UL 508EN/IEC 60947-5-5EN/IEC 60947-5-1CSA C22.2 No 14JIS C8201-1 |
| Product certifications: | CSAUL listed |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission: | Class B conforming to IEC 55011 |
| [Us] rated supply voltage: | 250 V |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110089608 |
|---|
