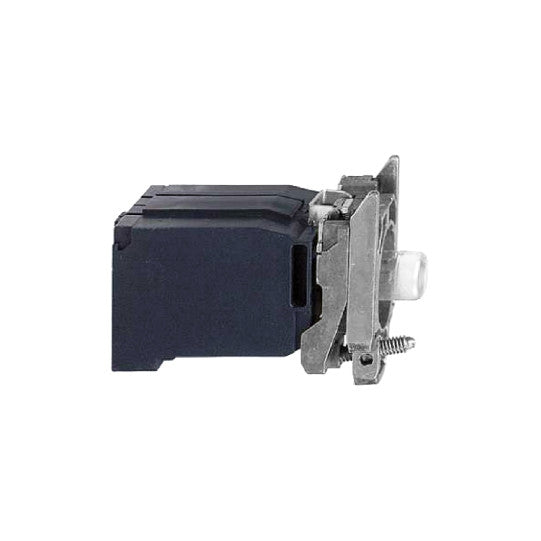

light block with body/fixing collar with BA9s incandesc. bulb 440...480V - ZB4BV8
SKU : ZB4BV8
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
light block with body/fixing collar with BA9s incandesc. bulb 440...480V - ZB4BV8
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Complete body/light block assembly |
| Device short name: | ZB4 |
| Fixing collar material: | Zamak |
| Sale per indivisible quantity: | 1 |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Light source: | Incandescent |
| Bulb base: | BA 9s |
| Light block supply: | Via integral transformer 1.2 VA 6 V |
| [Us] rated supply voltage: | 440...480 V AC at 50/60 Hz |
| [Us] rated supply voltage: | 440...480 V |
| CAD overall width: | 30 mm |
|---|---|
| CAD overall height: | 47 mm |
| CAD overall depth: | 60 mm |
| Terminals description ISO n°1: | (X1-X2)PL |
| Product weight: | 0.128 kg |
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN 60947-1 |
| Signalling type: | Steady |
| Mounting of block: | Front mounting |
| Electrical composition code: | P4M9 |
| Device presentation: | Basic sub-assemblies |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...55 °C |
| Electrical shock protection class: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP20 |
| Standards: | UL 508EN/IEC 60947-1EN/IEC 60947-5-4EN/IEC 60947-5-1JIS C8201-5-1CSA C22.2 No 14EN/IEC 60947-5-5JIS C8201-1 |
| Product certifications: | UL listedLROS (Lloyds register of shipping)GLBVCSADNV |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110889673 |
|---|
