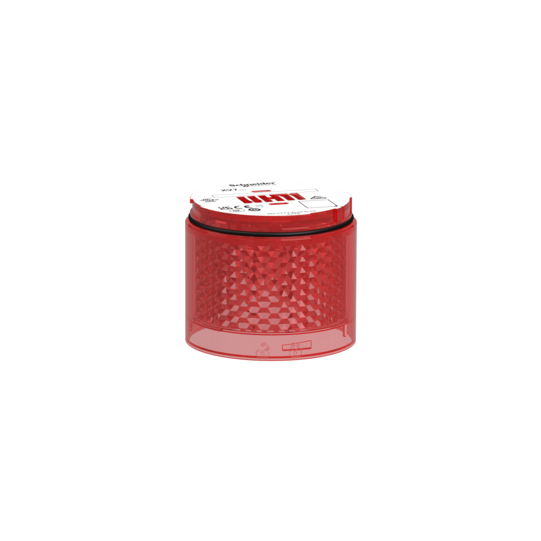

Light Module, Harmony XVB7 Modular Tower Light, Red, Ø70mm, Blinking, Colored Lens - XVB7C54
SKU : XVB7C54
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Light Module, Harmony XVB7 Modular Tower Light, Red, Ø70mm, Blinking, Colored Lens - XVB7C54
DESCRIPTION
| Range of product: | Harmony XVB7 |
|---|---|
| Product or component type: | Light module |
| Device composition: | Standard lens |
| Device short name: | XVB7 |
| Mounting diameter: | 70 mm |
| Signalling type: | Blinking |
| Light source: | LED, red |
| Material: | PC (polycarbonate) |
| Net weight: | 0.105 kg |
| Mounting position: | Upright/inverted |
| Blinking frequency: | 1 Hz |
|---|---|
| Service life in hours: | 50000 h |
| [Ue] rated operational voltage: | 24 V AC/DC |
| Rated operational voltage limits: | 21.6...26.4 V AC/DC |
| Current consumption: | 40 mA at 24 V AC45 mA at 24 V DC |
| Inrush current: | 0.5 A |
| Electrical shock protection class: | Class II |
| [Ui] rated insulation voltage: | 50 V |
| [Uimp] rated impulse withstand voltage: | 0.5 kV |
| Pollution degree: | 2 |
|---|---|
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| IP degree of protection: | IP66 |
| NEMA degree of protection: | Type 4/4X/12/13 indoor use only |
| Vibration resistance: | 6 gn, amplitude = +/- 0.5 mm (f = 10...500 Hz)in operation |
| Shock resistance: | 30 gn (duration = 6 ms) for in operation |
| Standards: | UL 60947-5-1IEC 60947-5-1CSA C22.2 No 60947-5-1 |
| Product certifications: | cULusCCCRCMUKCACE |
| Total lifecycle Carbon footprint: | 13 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3] |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606487129363 |
|---|
