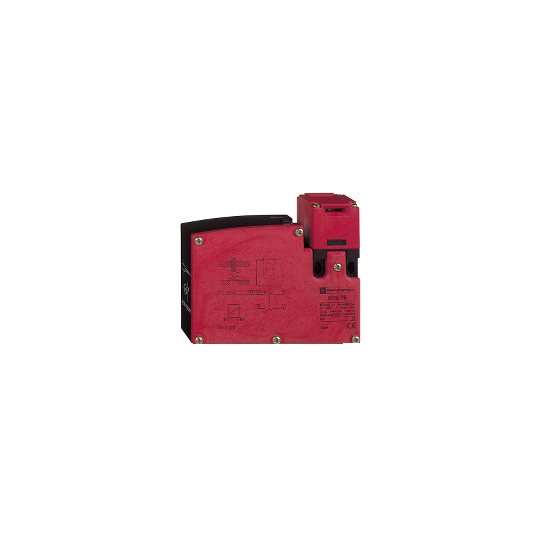

Limit switch for safety application - XCS-TE - operating key - 1 NC + 1 NO - Télémécanique - XCSTE5342
SKU : XCSTE5342
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Limit switch for safety application - XCS-TE - operating key - 1 NC + 1 NO - Télémécanique - XCSTE5342
DESCRIPTION
| Range of product: | Telemecanique Safety switches XCS |
|---|---|
| Product or component type: | Safety switch |
| Component name: | XCSTE |
| Design: | Rectangular |
| Material: | Plastic |
| Head type: | Key operated turret head |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Slow-break, break before make |
| Solenoid contacts type and composition: | 1 NC (slow-break) |
| Cable entry: | 1 entry tapped for Pg 11 |
| Electromagnet interlocking: | Locking on de-energisation and unlocking on energisation of solenoid |
| [Us] rated supply voltage: | 230 V - 20...10 % |
| Cable outer diameter: | 7...10 mm |
| Electrical connection: | Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Number of poles: | 2 |
| Locking options description: | With interlocking, locking by solenoid |
| Insulation: | Double insulated |
|---|---|
| Positive opening: | With NC contact |
| Supply voltage type: | AC/DC |
| Supply frequency: | 50/60 Hz |
| Load factor: | 1 |
| Power consumption in VA: | 10 VA |
| Mechanical durability: | 1000000 cycles |
| Positive opening minimum force: | 15 N |
| Minimum actuation speed: | 0.01 m/s |
| Maximum actuation speed: | 0.5 m/s |
| [Ie] rated operational current: | 0.55 A at 125 V, DC-13, Q300 conforming to EN/IEC 60947-5-10.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-13 A at 120 V, AC-15, B300 conforming to EN/IEC 60947-5-11.5 A at 240 V, AC-15, B300 conforming to EN/IEC 60947-5-1 |
| [Ithe] conventional enclosed thermal current: | 6 A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V conforming to EN/IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-5-1 |
| Short-circuit protection: | 10 A cartridge fuse type gG (gl) |
| Actuator forcible withdrawal rtc: | 500 N |
| Maximum operating rate: | 10 cyc/mn for maximum durability |
| Safety level: | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data: | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body material: | PA (polyamide) |
| Head material: | PA (polyamide) |
| Depth: | 33 mm |
| Height: | 94 mm |
| Width: | 110 mm |
| Product weight: | 0.36 kg |
| Standards: | CSA C22.2 No 14EN/ISO 12100EN 1088/ISO 14119EN/IEC 60947-5-1EN/IEC 60204-1UL 508 |
|---|---|
| Product certifications: | CSAUL |
| Protective treatment: | TC |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class II conforming to EN/IEC 61140 |
| IP degree of protection: | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110825244 |
|---|
