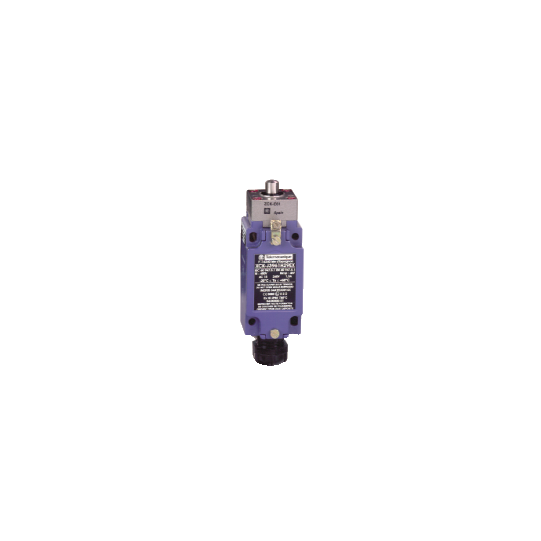

limit switch XCKJ - plunger - 2NC + NO - ATEX/IECEx - XCKJ3961H29EX
SKU : XCKJ3961H29EX
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
limit switch XCKJ - plunger - 2NC + NO - ATEX/IECEx - XCKJ3961H29EX
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCKJ |
| Sensor design: | Form B conforming to CENELEC EN 50041 |
| Body type: | Fixed |
| Head type: | Plunger head |
| Material: | Metal |
| Fixing mode: | By the body |
| Movement of operating head: | Linear |
| Type of operator: | Spring return plunger metal |
| Switch actuation: | On end |
| Type of approach: | Vertical approach, 1 direction |
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² |
| Cable entry number: | 1 tapped entry for M20 x 1.5 cable gland (included) 9...12 mm |
| Number of poles: | 3 |
| Contacts type and composition: | 2 NC + 1 NO |
| Contacts insulation form: | Zb |
| Contact operation: | Snap action |
| Number of steps: | 1 |
| Positive opening: | With |
| Minimum force for tripping: | 20 N |
| Maximum actuation speed: | 0.5 m/s |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| Body material: | Zamak |
|---|---|
| Head material: | Zamak |
| Positive opening minimum force: | 50 N |
| Minimum actuation speed: | 0.01 m/min |
| Contact code designation: | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 6 A AC |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508400 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 606644 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 6 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate 5000000 cycles, DC-13, inductive load type, 24 V, 3 W, operating rate 5000000 cycles, DC-13, inductive load type, 48 V, 2 W, operating rate |
| Mechanical durability: | 30000000 cycles |
| Marking: | II2 D-Ex tb IIIC T85°C Db IP66/67 |
| Width: | 40 mm |
| Height: | 77 mm |
| Depth: | 44 mm |
| Compatibility code: | XCKJ |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Electrical shock protection class: | Class I conforming to IEC 61140Class I conforming to NF C 20-030 |
| Ambient air temperature for operation: | -20...60 °C |
| Protective treatment: | TC |
| Dust zone: | Zone 21 - 22 |
| Product certifications: | INERIS 04ATEX0014XIEC-Ex INE 17.0020X |
| Standards: | IEC 60079-31IEC 60079-0 |
| Directives: | 2014/34/EU - ATEX directive |
| Mercury free: | YesRoHS exemption information |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389118027725 |
|---|
