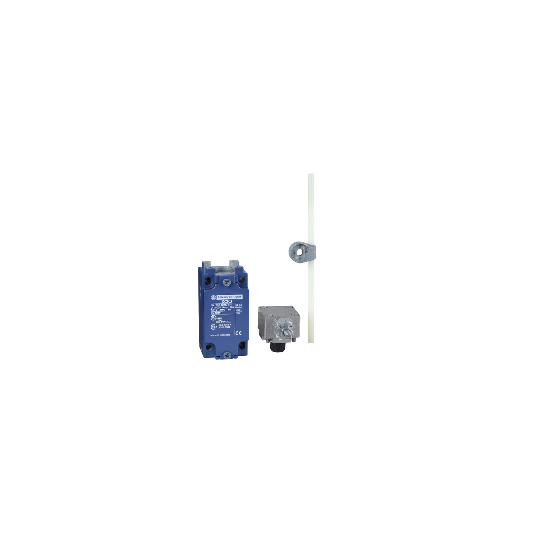

limit switch XCKJ - thermoplastic round rod lever 6 mm - 1NC+1NO - snap - Pg13 - XCKJ10559
SKU : XCKJ10559
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
limit switch XCKJ - thermoplastic round rod lever 6 mm - 1NC+1NO - snap - Pg13 - XCKJ10559
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCKJ |
| Sensor design: | Form D conforming to CENELEC EN 50041 |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Metal |
| Body material: | Zamak |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm |
| Type of approach: | Lateral approach, 1 or 2 programmable direction |
| Cable entry: | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9...12 mm |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Switch actuation: | By any moving part |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form: | Zb |
| Number of steps: | 1 |
| Positive opening: | Without |
| Minimum torque for tripping: | 0.25 N.m |
| Maximum actuation speed: | 1.5 m/s |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1 appendix A0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate 5000000 cycles, DC-13, inductive load type, 24 V, 10 W, operating rate 5000000 cycles, DC-13, inductive load type, 48 V, 7 W, operating rate |
| Mechanical durability: | 30000000 cycles |
| Width: | 40 mm |
| Height: | 77 mm |
| Depth: | 44 mm |
| Net weight: | 0.485 kg |
| Terminals description ISO n°1: | (21-22)NC(13-14)NO |
| Compatibility code: | XCKJ |
| Specific application: | Industrial |
| Shock resistance: | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| IK degree of protection: | IK07 conforming to IEC 62262 |
| Overvoltage category: | Class I conforming to IEC 61140Class I conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TH |
| Product certifications: | ULCSACCC |
| Standards: | CSA C22.2 No 14IEC 60204-1CENELEC EN 50041IEC 60204-1IEC 60947-5-1UL 508IEC 60947-5-1 |
| Mercury free: | YesRoHS exemption information |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110646047 |
|---|
