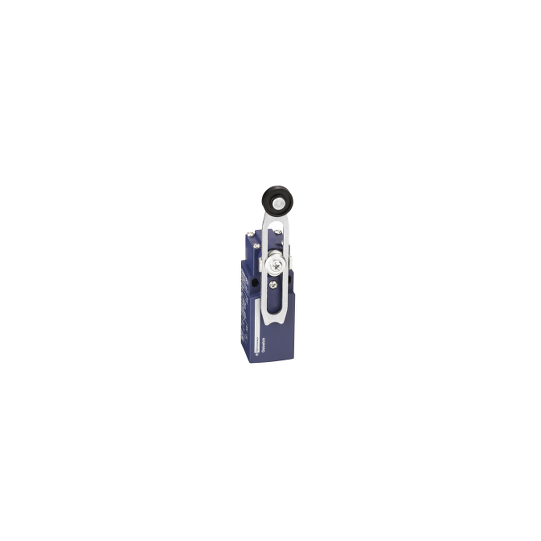

limit switch XCKN - th.plastic roller lever var.length - 1NC+1NO - snap - Pg11 - XCKN2145G11
SKU : XCKN2145G11
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
limit switch XCKN - th.plastic roller lever var.length - 1NC+1NO - snap - Pg11 - XCKN2145G11
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCKN |
| Sensor design: | Compact |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Plastic |
| Body material: | Plastic |
| Head material: | Plastic |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Spring return roller lever thermoplastic variable length |
| Type of approach: | Lateral approach, 2 directions |
| Cable entry: | 1 entry tapped for Pg 11 cable gland |
| Number of poles: | 2 |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Snap action |
| Switch actuation: | By 30° cam |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form: | Zb |
| Positive opening: | With |
| Positive opening minimum torque: | 0.15 N.m |
| Minimum torque for tripping: | 0.1 N.m |
| Maximum actuation speed: | 1.5 m/s |
| Contact code designation: | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix AR300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508500 V (pollution degree 3) conforming to IEC 60947-1300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, 120 V, 4 W, operating rate 5000000 cycles, DC-13, 24 V, 10 W, operating rate 5000000 cycles, DC-13, 48 V, 7 W, operating rate |
| Mechanical durability: | 10000000 cycles |
| Width: | 30 mm |
| Height: | 108...157 mm |
| Depth: | 42 mm |
| Net weight: | 0.18 kg |
| Terminals description ISO n°1: | (13-14)NO(21-22)NC |
| Device presentation: | Complete product |
| Compatibility code: | XCKN |
| Specific application: | Compact basic |
| Shock resistance: | 45 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK04 conforming to IEC 62262 |
| Overvoltage category: | Class II conforming to IEC 61140Class II conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | ULCCCCSA |
| Standards: | IEC 60947-5-1IEC 60204-1CSA C22.2 No 14IEC 60947-5-1IEC 60204-1UL 508 |
| Mercury free: | YesRoHS exemption information |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110318999 |
|---|
