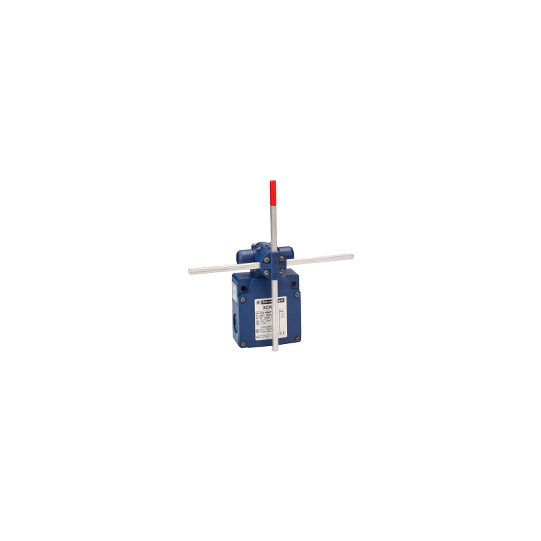

limit switch XCKVR - stay put crossed rods lever 6mm - 2x(NC+NO) - slow - M20 - XCKVR24SR1H29
DESCRIPTION
| Range of product: | OsiSense XC |
|---|---|
| Series name: | Special format |
| Product or component type: | Limit switch |
| Product specific application: | For hoisting and mechanical handling applications |
| Device short name: | XCKVR |
| Body type: | Fixed |
| Head type: | Rotary head |
| Material: | Plastic |
| Body material: | (PBT+PC)-GF30 FR |
| Head material: | (PBT+PC)-GF30 FR |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| Type of approach: | Lateral approach, 2 directions |
| Cable entry: | 1 entry tapped and 2 breakout holes for M20 x 1.5 cable gland, cable outer diameter: 7...13 mm |
| Number of poles: | 4 |
| Contacts type and composition: | 2 x (1 NC + 1 NO) |
| Contact operation: | Slow-break, break before make |
| Switch actuation: | By any moving part |
|---|---|
| Electrical connection: | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts insulation form: | Zb |
| Number of steps: | 2 electrical positions |
| Contact block per direction [control circuit]: | 2 per direction |
| Positive opening: | Without |
| Minimum torque for tripping: | 0.5 N.m |
| Minimum actuation speed: | 6 m/min |
| Maximum actuation speed: | 1.5 m/s actuation point on the rod between 65 and 95 mm |
| Maximum displacement angle: | -180 °180 ° |
| Contact code designation: | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix AQ150, DC-13 (Ue = 125 V), Ie = 0.55 A conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 300 V conforming to UL 508300 V conforming to CSA C22.2 No 14500 V (pollution degree 3) conforming to IEC 60947-1 |
| Maximum resistance across terminals: | 25 MOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 606646 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse, type gG |
| Mechanical durability: | 1000000 cycles |
| Width: | 200 mm |
| Height: | 200 mm |
| Depth: | 57 mm |
| Net weight: | 0.32 kg |
| Terminals description ISO n°1: | (21-22)NC(13-14)NO |
| Compatibility code: | XCKVR |
| Shock resistance: | 50 gn conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 25 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK04 conforming to IEC 62262 |
| Electrical shock protection class: | Class II conforming to IEC 60536 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | CSACCCULCE |
| Standards: | IEC 60947-5-1CSA C22.2 No 14UL 508 |
| Mercury free: | YesRoHS exemption information |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389119077460 |
|---|
