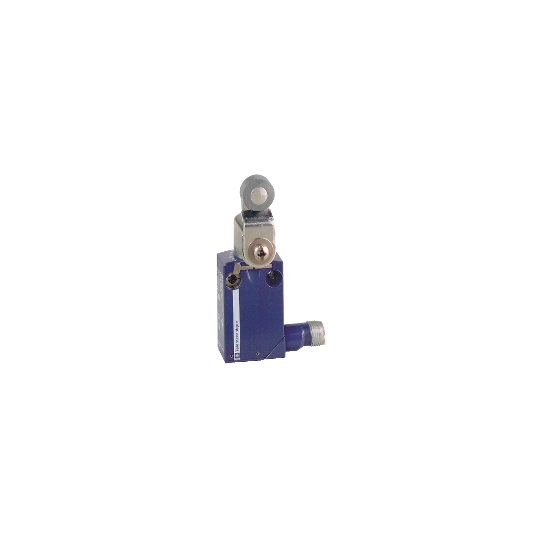

limit switch XCMD - steel roller lever - 1C/O - snap - M12 - XCMD2116M12
SKU : XCMD2116M12
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
limit switch XCMD - steel roller lever - 1C/O - snap - M12 - XCMD2116M12
DESCRIPTION
| Range of product: | Telemecanique Limit switches XC Standard |
|---|---|
| Series name: | Standard format |
| Product or component type: | Limit switch |
| Device short name: | XCMD |
| Sensor design: | Miniature |
| Body type: | Plug-in body |
| Head type: | Rotary head |
| Material: | Metal |
| Body material: | Zamak |
| Head material: | Zamak |
| Fixing mode: | By the body |
| Movement of operating head: | Rotary |
| Type of operator: | Spring return roller lever metal |
| Type of approach: | Lateral approach, 2 directions |
| Number of poles: | 1 |
| Contacts type and composition: | 1 C/O |
| Contact operation: | Snap action |
| Tracks: | 24/31 mm |
|---|---|
| Switch actuation: | By 30° cam |
| Electrical connection: | Male connector M12, 4 pins |
| Contacts insulation form: | Za |
| Positive opening: | Without |
| Minimum force for tripping: | 0.1 N |
| Maximum actuation speed: | 1.5 m/s |
| [Ie] rated operational current: | 1.5 A at 240 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A0.1 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 3 A |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to IEC 60947-5-1 |
| Maximum resistance across terminals: | 25 mOhm conforming to IEC 60255-7 category 3 |
| [Uimp] rated impulse withstand voltage: | 2.5 kV conforming to IEC 606642.5 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 4 A cartridge fuse, type gG |
| Electrical durability: | 5000000 cycles, DC-13, 24 V, 3 W, operating rate 5000000 cycles, DC-13, 48 V, 2 W, operating rate 5000000 cycles, DC-13, 120 V, 1 W, operating rate |
| Mechanical durability: | 10000000 cycles |
| Width: | 30 mm |
| Height: | 50 mm |
| Depth: | 16 mm |
| Net weight: | 0.13 kg |
| Device presentation: | Complete product |
| Compatibility code: | XCMD |
| Specific application: | Miniature variable |
| Shock resistance: | 25 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration resistance: | 5 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67 conforming to IEC 60529IP68 conforming to IEC 60529 |
| IK degree of protection: | IK06 conforming to EN 62262 |
| Electrical shock protection class: | Class I conforming to IEC 61140Class I conforming to NF C 20-030 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Protective treatment: | TC |
| Product certifications: | CCCCSAUL |
| Standards: | UL 508EN/IEC 60204-1CSA C22.2 No 14EN/IEC 60947-5-1 |
| Mercury free: | YesRoHS exemption information |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110221503 |
|---|
