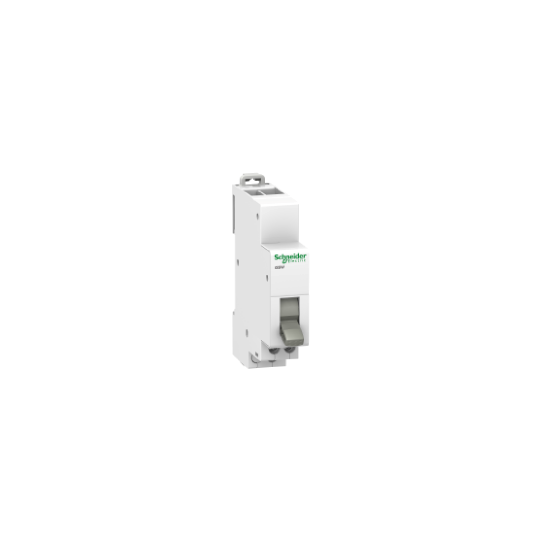

linear switch - iSSW - 1 C/O - 20A - 250 V AC - 2 positions - A9E18070
SKU : A9E18070
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
linear switch - iSSW - 1 C/O - 20A - 250 V AC - 2 positions - A9E18070
DESCRIPTION
| Range of product: | Acti 9 |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 iSSW |
| Product or component type: | Linear switch |
| Device short name: | ISSW |
| Device application: | Electrical circuit control |
| Contacts type and composition: | 1 C/O |
| [Ue] rated operational voltage: | 250 V AC 50/60 Hz |
| Standards: | IEC 60669-1IEC 60947-5-1 |
| [Ie] rated operational current: | 20 A |
|---|---|
| Control type: | Toggle 2 positions |
| Marking: | 0 - 1 |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 82 mm |
| Width: | 18 mm |
| Depth: | 75 mm |
| Colour: | White |
| Electrical durability: | AC-22: 30000 cycles cos Phi = 0.8 |
| Connections - terminals: | Staggered tunnel terminal (downside) 2 cable(s) 0.5...2.5 mm² flexibleStaggered tunnel terminal (downside) 2 cable(s) 0.5...2.5 mm² rigid without cable end |
| Wire stripping length: | 9 mm |
| Tightening torque: | 1 N.m |
| Market segment: | Small commercialResidential |
| Compatibility code: | ISSW |
| IP degree of protection: | IP20 conforming to IEC 60529 |
|---|---|
| Tropicalisation: | 2 |
| Pollution degree: | 3 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480088476 |
|---|
