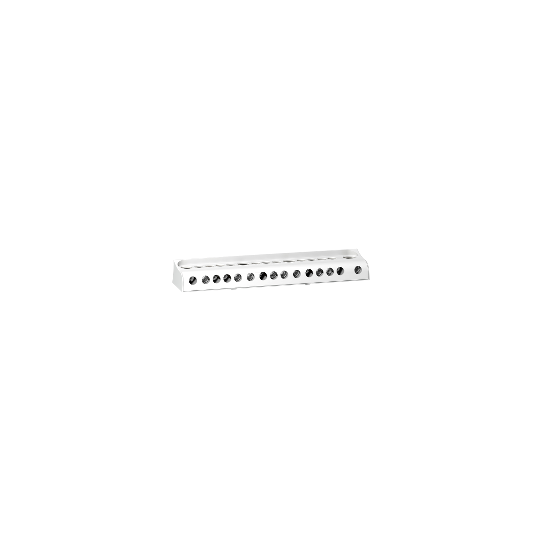

Linergy - additional Neutral bar for screw distri block - 125 A - 15 connections - LGYN12515
SKU : LGYN12515
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Linergy - additional Neutral bar for screw distri block - 125 A - 15 connections - LGYN12515
DESCRIPTION
| Range of product: | Linergy |
|---|---|
| Range: | Linergy |
| Product name: | Linergy DS |
| Product or component type: | Extension module |
| Comb busbar, distribution terminal block accessory type: | Neutral bar |
| Poles description: | 1N |
| Accessory / separate part category: | Connection accessories |
| Distribution block outgoers: | 15 holes |
|---|---|
| Mounting support: | Direct mounting on rear |
| Mounting mode: | By screws |
| [Ue] rated operational voltage: | 230 V AC Ph/N |
| [Ie] rated operational current: | 125 A at 40 °C |
| [In] rated current: | 125 A at 40 °C |
| [Ui] rated insulation voltage: | 500 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV conforming to EN/IEC 61439-1 |
| [Icw] rated short-time withstand current: | 3.5 kA for 1 s |
| [Ipk] rated peak withstand current: | 20 kA |
| Busbar length: | 155 mm |
| 9 mm pitches: | 17 |
| 18 mm pitches: | 8.5 |
| Height: | 20 mm |
| Width: | 155 mm |
| Depth: | 35 mm |
| Net weight: | 149 g |
| Connections - terminals: | Supply: screw terminal 1 cable(s) 10...35 mm² rigidSupply: screw terminal 1 cable(s) 6...35 mm² flexible with cable endDistribution: screw terminal 3 cable(s) 10...35 mm² rigidDistribution: screw terminal 3 cable(s) 4...25 mm² flexible with cable endDistribution: screw terminal 11 cable(s) 1.5...16 mm² rigidDistribution: screw terminal 11 cable(s) 1.5...10 mm² flexible with cable end |
| Tightening torque: | Distribution: 2 N.m PZ2 screwdriver 6.5 mmDistribution: 2 N.m flat screwdriver 6.5 mmSupply: 2.5 N.m PZ2 screwdriver 9.5 mmSupply: 2.5 N.m flat screwdriver 9.5 mmDistribution: 2 N.m PZ2 screwdriver 8.5 mmDistribution: 2 N.m flat screwdriver 8.5 mm |
| Range compatibility: | ComPact |
| Standards: | IEC 60947-7-1EN/IEC 61439-1IEC 61439-2 |
|---|---|
| Pollution degree: | 3 |
| Overvoltage category: | III |
| Dielectric strength: | 2500 V |
| Ambient air temperature for operation: | -25...55 °C |
| Colour: | White (RAL 9003) |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480542145 |
|---|
