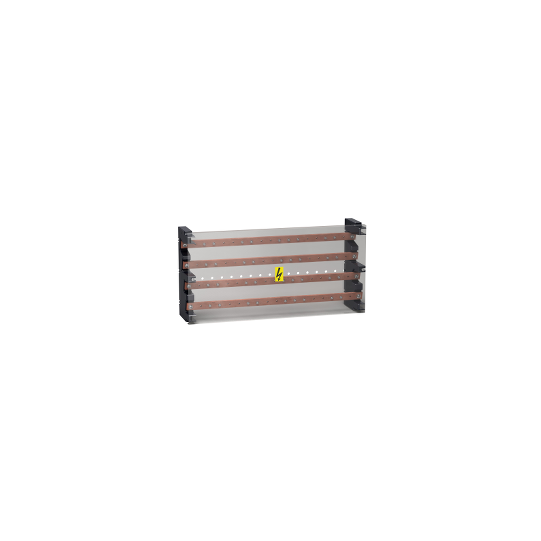

Linergy BS - Répartiteur étagé - 630A - 4P - 235x470x115 - LVS04055
SKU : LVS04055
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Linergy BS - Répartiteur étagé - 630A - 4P - 235x470x115 - LVS04055
DESCRIPTION
| Range: | Linergy |
|---|---|
| Range of product: | Linergy |
| Product or component type: | Multi-stage distribution block |
| Product name: | Linergy BS |
| Range compatibility: | PrismaSeT G enclosurePrismaSeT P enclosure |
| Product compatibility: | Spacial enclosures |
| IP degree of protection: | IPxx B |
| Mounting support: | Slotted backplatePrisma uprightPlain backplate |
|---|---|
| Mounting mode: | VerticalHorizontal |
| Poles description: | 4P |
| [Ue] rated operational voltage: | 440 V AC |
| [Ui] rated insulation voltage: | 750 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ie] rated operational current: | 630 A |
| [In] rated current: | 630 A at 40 °C |
| [Icw] rated short-time withstand current: | 25 kA for 1 s |
| [Ipk] rated peak withstand current: | 40 kA |
| I²t on activation: | 625000000 A².s |
| Busbar cross section: | 32 x 8 mm |
| Connections - terminals: | Supply: crimped lug50 mm²Supply: flexible bars, 32 x 8 mmDistribution: M6 holes (phase) , 13 x 1...50 mm² |
| Height: | 235 mm |
| Width: | 470 mm |
| Depth: | 115 mm |
| Net weight: | 5.6 kg |
| Compatibility code: | MULTI-STAGE_DISTRIB_BLOCK |
| Standards: | IEC 61439-1, inside enclosureIEC 61439-2, inside enclosure |
|---|---|
| Product certifications: | ASTA |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606481870940 |
|---|
