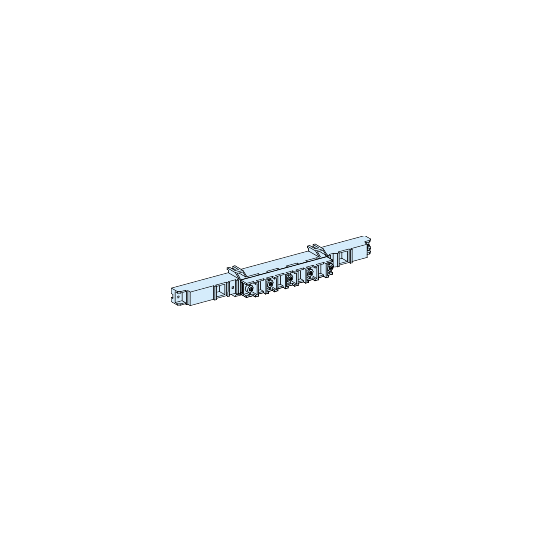

Linergy BS - Support de jeu de barres de fond 160 à 400A - LVS04191
SKU : LVS04191
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Linergy BS - Support de jeu de barres de fond 160 à 400A - LVS04191
DESCRIPTION
| Range: | Linergy |
|---|---|
| Range of product: | Linergy |
| Product or component type: | Busbar support |
| Product name: | Linergy BS |
| Range compatibility: | Linergy BS busbarPrismaSeT P enclosurePrismaSeT G enclosure |
| Cubicle-device connection: | Linergy BS rear busbar |
|---|---|
| Enclosure/cubicle description: | Cubicle - width 650 mmFloor-standing enclosure - width 600 mmWall-mounted enclosure - width 600 mmFloor-standing enclosure - width 850 mmExtension enclosure - width 600 mm |
| Permissible current: | 160 A - busbar cross section: 15 x 5 mm250 A - busbar cross section: 20 x 5 mm400 A - busbar cross section: 32 x 5 mm |
| [Icw] rated short-time withstand current: | 10 kA (1 s) at 160 A for 450 mm between support centres15 kA (1 s) at 250 A for 450 mm between support centres20 kA (1 s) at 400 A for 300 mm between support centres25 kA (1 s) at 400 A for 225 mm between support centres |
| Quantity per set: | Set of 1 |
| Net weight: | 0.24 kg |
| Standards: | IEC 61439-2IEC 61439-1 |
|---|---|
| Product certifications: | ASTA |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606481866974 |
|---|
