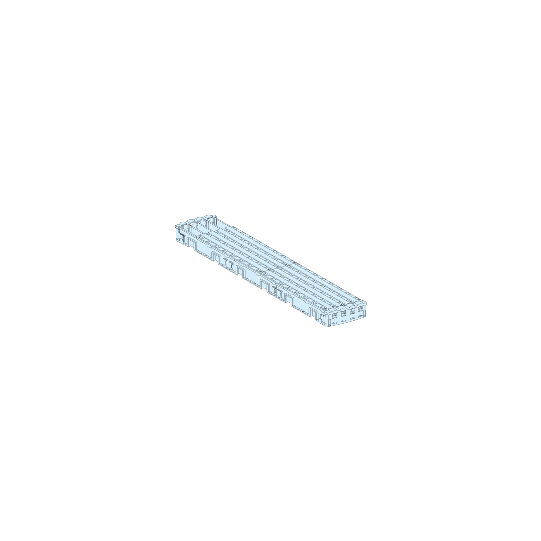

Linergy BW - Jeu de barres isolées - 125 A 4P - L= 450 mm (Powerclip) - LVS04104
SKU : LVS04104
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Linergy BW - Jeu de barres isolées - 125 A 4P - L= 450 mm (Powerclip) - LVS04104
DESCRIPTION
| Range: | Linergy |
|---|---|
| Range of product: | Linergy |
| Product or component type: | Busbar |
| Product name: | Linergy BW |
| Range compatibility: | PrismaSeT G enclosurePrismaSeT P enclosure |
| IP degree of protection: | IPxx B |
| Busbar description: | Insulated bar |
| Quantity per set: | Set of 1 |
| Poles description: | 4P |
|---|---|
| Installation direction: | Vertical, operating position: rear |
| Enclosure/cubicle description: | Cubicle - width 650 mmFloor-standing enclosure - width 600 mmWall-mounted enclosure - width 600 mmFloor-standing duct - width 300 mmWall-mounted duct - width 300 mmPack enclosure |
| [Ui] rated insulation voltage: | 500 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ie] rated operational current: | 125 A |
| [Icw] rated short-time withstand current: | 8.5 kA (1 s) |
| [Ipk] rated peak withstand current: | 20 kA |
| I²t on activation: | 72250 kA².s |
| Permissible current: | 125 A |
| Length: | 450 mm |
| Height: | 85 mm |
| Depth: | 35 mm |
| Net weight: | 1.42 kg |
| Type of busbar connection: | M6 threaded hole |
| Connection pitch: | Connection each 25 mm |
| Standards: | IEC 61439-2IEC 61439-1 |
|---|---|
| Product certifications: | ASTA |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481870056 |
|---|
