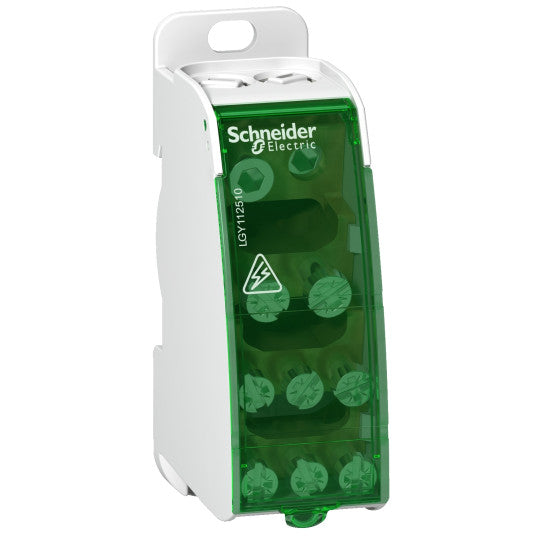

Linergy DS - screw distribution block 1P - 125A - 10 holes - LGY112510
SKU : LGY112510
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Linergy DS - screw distribution block 1P - 125A - 10 holes - LGY112510
DESCRIPTION
| Range of product: | Linergy |
|---|---|
| Range: | Linergy |
| Product name: | Linergy DS |
| Product or component type: | Distribution block |
| Mounting support: | DIN rail |
|---|---|
| Range compatibility: | Prisma GPrisma PPrisma PHPrisma PackSpacialKaedraPragmaTeSys |
| Product compatibility: | Spacial enclosures |
| Poles description: | 1P |
| Distribution block outgoers: | 10 holes |
| [Ue] rated operational voltage: | 230 V AC Ph/N440 V AC Ph/Ph |
| [Ui] rated insulation voltage: | 500 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ie] rated operational current: | 125 A at 40 °C |
| [In] rated current: | 125 A at 40 °C |
| [Icw] rated short-time withstand current: | 4.2 kAfor 1 s |
| [Ipk] rated peak withstand current: | 25 kA |
| Connections - terminals: | Supply: screw terminal 2 cable(s) 10...35 mm² rigidSupply: screw terminal 2 cable(s) 6...35 mm² flexible with cable endDistribution: screw terminal 2 cable(s) 2.5...25 mm² rigidDistribution: screw terminal 2 cable(s) 1.5...16 mm² flexible with cable endDistribution: screw terminal 6 cable(s) 1.5...16 mm² rigidDistribution: screw terminal 6 cable(s) 1.5...10 mm² flexible with cable end |
| Tightening torque: | Distribution: 2 N.m flat screwdriver 7.5 mmDistribution: 2 N.m PZ2 screwdriver 7.5 mmSupply: 8 N.m flat screwdriver 9.5 mmSupply: 8 N.m PZ2 screwdriver 9.5 mmDistribution: 2 N.m flat screwdriver 5.8 mmDistribution: 2 N.m PZ2 screwdriver 5.8 mm |
| 9 mm pitches: | 3 |
| Height: | 85 mm |
| Width: | 27 mm |
| Depth: | 50.5 mm |
| Product weight: | 0.127 kg |
| Colour: | White (RAL 9003) |
| Pollution degree: | 3 |
|---|---|
| Overvoltage category: | III |
| Dielectric strength: | 2500 V |
| Standards: | EN/IEC 61439-1EN/IEC 60947-7-1 |
| Ambient air temperature for operation: | -25...55 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606480542152 |
|---|
