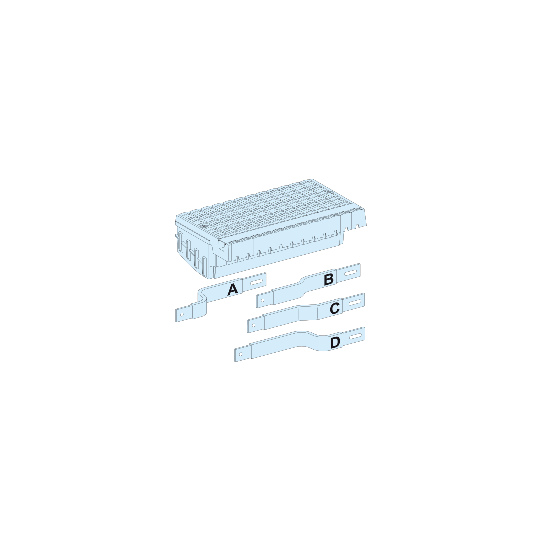

Linergy FC - Répartiteur Compact NSX/INS/INV100-250 fixe maneton 4P - JdB LGY - LVS04404
DESCRIPTION
| Range: | Linergy |
|---|---|
| Range of product: | Linergy |
| Product or component type: | Device feeder |
| Product name: | Linergy FC |
| Accessory / separate part category: | Connection accessory |
| Range compatibility: | PrismaSeT P cubicle |
| Provided equipment: | Prefabricated flexible connection to Linergy busbars |
| Enclosure/cubicle description: | Cubicle - width 650 mm |
|---|---|
| Number of devices: | 3 (4P) |
| Poles description: | 4P |
| Installed device: | ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installationComPact: fixed NSX250 without earth leakage protection - control: toggle - vertical installationComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installationComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installationComPact: fixed INS250 - control: direct front rotary handle - vertical installationComPact: fixed INV250 - control: direct front rotary handle - vertical installation |
| Mounting support: | Mounting plate |
| Installation direction: | Horizontal |
| [Ui] rated insulation voltage: | 750 V AC |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ie] rated operational current: | 675 A at 40 °C |
| [Ue] rated operational voltage: | 690 V |
| [Ipk] rated peak withstand current: | 50 kA |
| I²t on activation: | 25000000 A².s |
| Permissible current: | 675 A at 40 °C615 A at 60 °C570 A at 70 °C |
| Connections - terminals: | Supply: flexible bars (phase / neutral) , 32 x 5 mmOutgoer: plug in (phase / neutral) , 3 outgoers |
| Standards: | IEC 61439-1IEC 61439-2 |
| Product certifications: | KEMAASEFA |
| Quantity per set: | Set of 1 |
| Length: | 440 mm |
| Height: | 132 mm |
| Depth: | 235 mm |
| Net weight: | 8 kg |
| Colour: | Black |
| Compatibility code: | Polypact |
| Enclosure/cubicle width: | 650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 4P 1 Linergy FC 7650 mm 400 mm PrismaSeT P cubicle ComPact INS250 fixed direct front rotary handle vertical 4P 2 Linergy FC 7650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 4P 1 Linergy FC 7650 mm 400 mm PrismaSeT P cubicle ComPact INV250 fixed direct front rotary handle vertical 4P 2 Linergy FC 7650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 without fixed toggle vertical 4P 3 Linergy FC 6650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 without fixed toggle vertical 4P 3 Linergy FC 7650 mm 400 mm PrismaSeT P cubicle ComPact NSX100...160 with fixed toggle vertical 4P 3 Linergy FC 8650 mm 400 mm PrismaSeT P cubicle ComPact NSX250 with fixed toggle vertical 4P 3 Linergy FC 9 |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Compliant |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Environmental Disclosure: | ENVPEP2103021_V1 |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| PVC free: | Yes |
| Code EAN: | 3606481870643 |
|---|
