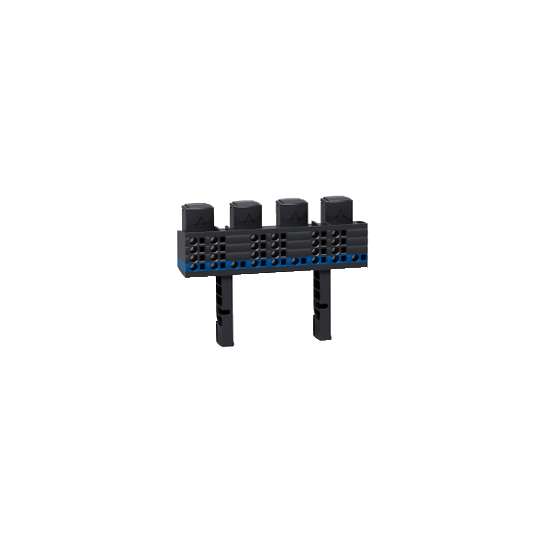

Linergy FM - Répartiteur 1/2 rangée - 4P 160A - (Multiclip) - LVS04018
SKU : LVS04018
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Linergy FM - Répartiteur 1/2 rangée - 4P 160A - (Multiclip) - LVS04018
DESCRIPTION
| Range: | Linergy |
|---|---|
| Range of product: | Linergy |
| Product or component type: | Device feeder |
| Product name: | Linergy FM |
| Range compatibility: | PrismaSeT G enclosurePrismaSeT P enclosurePrisma PH enclosurePrismaSeT Pack 160 enclosurePrismaSeT Pack 250 enclosure |
| Product compatibility: | Spacial enclosures |
| IP degree of protection: | IPxx B |
| Mounting support: | Slotted backplateDIN railPlain backplate |
|---|---|
| Installed device: | modular device |
| Poles description: | 3P + N |
| [Ue] rated operational voltage: | 690 V AC |
| [Ui] rated insulation voltage: | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ie] rated operational current: | 160 A |
| [In] rated current: | 160 A at 40 °C |
| [Ipk] rated peak withstand current: | 20 kA |
| I²t on activation: | 6700000 A².s |
| Connections - terminals: | Supply: crimped lug50 mm²Supply: flexible bars, 20 x 3 mmDistribution: quick-connect terminal strips (phase) , 6 x 4...10 mm² (flexible) Distribution: quick-connect terminal strips (phase) , 6 x 4...10 mm² (rigid) Distribution: quick-connect terminal strips (neutral) , 6 x 4...10 mm² (flexible) Distribution: quick-connect terminal strips (neutral) , 6 x 4...10 mm² (rigid) |
| 9 mm pitches: | 24 |
| Total number of 18 mm modules: | 12 |
| Net weight: | 0.92 kg |
| Colour: | Anthracite grey (RAL 7016) |
| Compatibility code: | MULTICLIP |
| Standards: | IEC 61439-1, inside enclosureIEC 61439-2, inside enclosureIEC 60947-7-1 |
|---|---|
| Product certifications: | ASTA |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481870841 |
|---|
