Linergy LGYE - Profil JdB horizontal - 2500A - L=2000mm - LVS04566
SKU : LVS04566
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

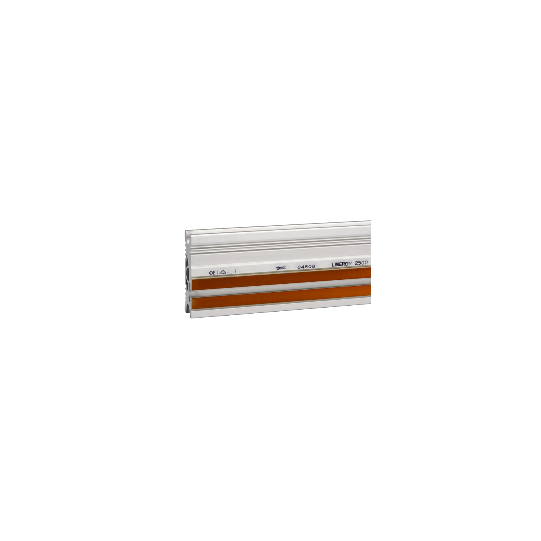

Linergy LGYE - Profil JdB horizontal - 2500A - L=2000mm - LVS04566
DESCRIPTION
| Range: | Linergy |
|---|---|
| Range of product: | Linergy |
| Product or component type: | Profile busbar |
| Product name: | Linergy LGYE |
| Range compatibility: | PrismaSeT P enclosure |
| Accessory / separate part category: | Busbar accessory |
| Busbar description: | Linergy |
| Quantity per set: | Set of 1 |
| Installation direction: | Horizontal, operating position: topHorizontal, operating position: bottom |
|---|---|
| Enclosure/cubicle description: | Cubicle - width 650 mmCubicle - width 650 + 150 mmCubicle duct - width 300 mmCubicle duct - width 400 mm |
| [Ui] rated insulation voltage: | 1000 V |
| [Uimp] rated impulse withstand voltage: | 12 kV (degree of pollution: 3) |
| [Ie] rated operational current: | 2500 A |
| [Icw] rated short-time withstand current: | 60 kA (1 s) for 2 supports (horizontal position)85 kA (1 s) for 3 supports (horizontal position)100 kA (1 s) for 4 supports (horizontal position) |
| Permissible current: | 2440 A at 35 °C: 2100 A at 35 °C: > IP31 |
| Length: | 2000 mm |
| Height: | 150 mm |
| Width: | 100 mm |
| Depth: | 31 mm |
| Net weight: | 9.25 kg |
| Colour: | Natural |
| Type of busbar connection: | Single t-slot |
| Connection pitch: | Free connection position |
| Compatibility code: | Busbar_evo |
| Standards: | IEC 61439-1IEC 61439-2 |
|---|---|
| Product certifications: | ASTA |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606481870605 |
|---|
