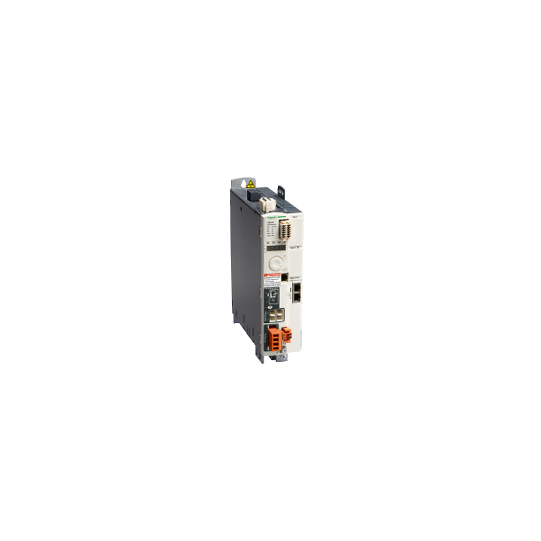

LXM32 MODULAR 6A RMS CRETE 3PH 480V - LXM32MU60N4
DESCRIPTION
| Range of product: | Lexium 32 |
|---|---|
| Product or component type: | Motion servo drive |
| Device short name: | LXM32M |
| Format of the drive: | Book |
| Network number of phases: | Three phase |
| [Us] rated supply voltage: | 200...240 V (- 15...10 %)380...480 V (- 15...10 %) |
| Supply voltage limits: | 170...264 V323...528 V |
| Supply frequency: | 50/60 Hz (- 5...5 %) |
| Network frequency: | 47.5...63 Hz |
| EMC filter: | Integrated |
| Continuous output current: | 1.5 A (f = 8 kHz) |
| Output current 3s peak: | 6 A for 5 s |
| Continuous power: | 400 W at 230 V800 W at 400 V |
| Nominal power: | 0.35 kW at 230 V (f = 8 kHz)0.4 kW at 400 V (f = 8 kHz) |
| Line current: | 1.2 A, THDI of 201 % at 480 V, without line choke1.9 A, THDI of 106 % at 380 V, with external line choke of 2 mH1.6 A, THDI of 116 % at 480 V, with external line choke of 2 mH1.8 A, THDI of 187 % at 380 V, without line choke |
| Switching frequency: | 8 kHz |
|---|---|
| Overvoltage category: | III |
| Leakage current: | |
| Output voltage: | |
| Electrical isolation: | Between power and control |
| Type of cable: | Single-strand IEC cable (for ? = 50 °C) conductor material: copper 90 °C ,wire insulation material: XLPE/EPR |
| Electrical connection: | Terminal cable 3 mm² AWG 12 (CN8)Terminal cable 5 mm² AWG 10 (CN1)Terminal cable 5 mm² AWG 10 (CN10) |
| Tightening torque: | 0.5 N.m (CN8)0.7 N.m (CN1)0.7 N.m (CN10) |
| Discrete input number: | 2 capture2 safety4 logic |
| Discrete input type: | Capture (CAP)Logic (DI)Safety (compliment of STO_A, compliment of STO_B) |
| Sampling duration: | 0.25 ms0.25 ms (DI) for discrete |
| Discrete input voltage: | 24 V DC for capture24 V DC for logic24 V DC for safety |
| Discrete input logic: | Positive (compliment of STO_A, compliment of STO_B) at State 0: 15 V conforming to EN/IEC 61131-2 type 1Positive (DI) at State 0: > 19 V at State 1: Positive or negative (DI) at State 0: 15 V conforming to EN/IEC 61131-2 type 1 |
| Response time: | |
| Discrete output number: | 3 |
| Discrete output type: | Logic (DO) 24 V DC |
| Discrete output voltage: | |
| Discrete output logic: | Positive or negative (DO) conforming to EN/IEC 61131-2 |
| Contact bounce time: | 2 µs (CAP)0.25 µs...1.5 ms (DI) |
| Braking current: | 50 mA |
| Response time on output: | 250 µs (DO) discrete |
| Control signal type: | Servo motor encoder feedbackPulse train output (PTO) |
| Protection type: | Against reverse polarity |
| Safety function: | STO (safe torque off), integratedSS1 (safe stop 1), with separated eSM safety cardSS2 (safe stop 2), with separated eSM safety cardSLS (safe limited speed), with separated eSM safety cardSOS (safe operating stop), with separated eSM safety card |
| Safety level: | SIL 3 conforming to EN/IEC 61508PL = e conforming to ISO 13849-1 |
| Communication interface: | Integrated ModbusWith separated communication card CANopenWith separated communication card CANmotionWith separated communication card Ethernet/IPWith separated communication card EtherCATWith separated communication card ProfibusWith separated communication card DeviceNetWith separated communication card I/O |
| Connector type: | RJ45 (labelled CN7) |
| Physical interface: | 2-wire RS485 multidrop Modbus |
| Transmission rate: | 9600, 19200, 38400 bps for bus length of |
| Number of addresses: | 1...247 Modbus |
| Status LED: | 1 LED (red) servo drive voltage |
| Signalling function: | Display of faults in 7 segments |
| Marking: | CE |
| Operating position: | Vertical +/- 10 degree |
| Product compatibility: | Servo motor BMH (70 mm, 1 motor stacks)Servo motor BSH (55 mm, 1 motor stacks)Servo motor BSH (55 mm, 2 motor stacks)Servo motor BSH (55 mm, 3 motor stacks) |
| Width: | 68 mm |
| Height: | 270 mm |
| Depth: | 237 mm |
| Product weight: | 1.8 kg |
| Electromagnetic compatibility: | Conducted EMC at class A group 1 conforming to EN 55011Conducted EMC at class A group 2 conforming to EN 55011Conducted EMC at environment 2 category C3 conforming to EN/IEC 61800-3Conducted EMC at category C2 conforming to EN/IEC 61800-3Conducted EMC at environments 1 and 2 conforming to EN/IEC 61800-3Electrostatic discharge immunity test at level 3 conforming to EN/IEC 61000-4-2Susceptibility to electromagnetic fields at level 3 conforming to EN/IEC 61000-4-31.2/50 µs shock waves immunity test at level 3 conforming to EN/IEC 61000-4-5Electrical fast transient/burst immunity test at level 4 conforming to EN/IEC 61000-4-4Radiated EMC at class A group 2 conforming to EN 55011Radiated EMC at category C3 conforming to EN/IEC 61800-3 |
|---|---|
| Standards: | EN/IEC 61800-3EN/IEC 61800-5-1 |
| Product certifications: | RoHSCSAULTÜV |
| IP degree of protection: | IP20 conforming to EN/IEC 60529IP20 conforming to EN/IEC 61800-5-1 |
| Vibration resistance: | 1.5 mm peak to peak (f = 3...13 Hz) conforming to EN/IEC 60068-2-61 gn (f = 13...150 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance: | 15 gn for 11 ms conforming to EN/IEC 60028-2-27 |
| Pollution degree: | 2 conforming to EN/IEC 61800-5-1 |
| Environmental characteristic: | Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity: | Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3 |
| Ambient air temperature for operation: | 0...50 °C conforming to UL |
| Ambient air temperature for storage: | -25...70 °C |
| Type of cooling: | Natural convection |
| Operating altitude: | > 1000...3000 m with conditions |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3606480076862 |
|---|---|
