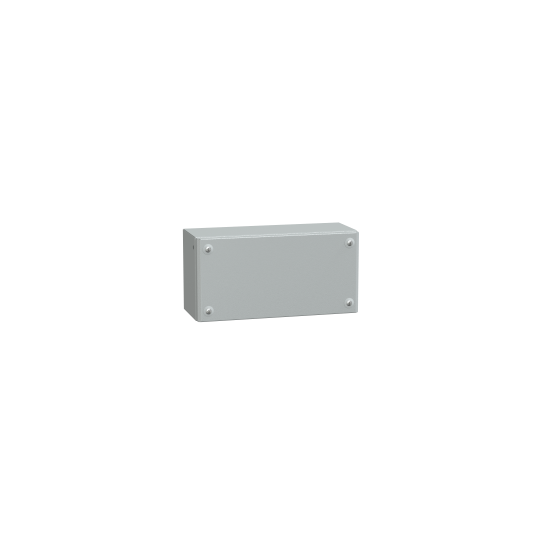

Metal industrial box plain door H150xW300xD120 IP66 IK10 RAL 7035 - NSYSBM153012
SKU : NSYSBM153012
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Metal industrial box plain door H150xW300xD120 IP66 IK10 RAL 7035 - NSYSBM153012
DESCRIPTION
| Range: | Spacial |
|---|---|
| Product name: | Spacial SBM |
| Device application: | Multi-purpose |
| Product or component type: | Industrial box |
| Device short name: | SBM |
| Enclosure type: | Flat face box |
| Enclosure nominal height: | 150 mm |
| Enclosure nominal width: | 300 mm |
| Enclosure nominal depth: | 120 mm |
| Enclosure mounting: | Wall mounted |
| Device composition: | 4 cover screw1 cover1 body |
| Body type: | Single piece body folded and welded |
| Type of front cover: | Plain door |
| Cover fixing: | Half turn metal screw |
| Lock type: | Captive screw PZ2 outside sealed area |
| Removable parts: | Cover by captive screws |
| Material: | Sheet steel |
|---|---|
| Surface finish: | Polyester powder |
| Colour: | Grey (RAL 7035) |
| Standards: | IEC 62208 |
| Product certifications: | LRDNV-GLULBV |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| IK degree of protection: | IK10 conforming to IEC 62262 |
| Ambient air temperature for storage: | -35...60 °C |
| Ambient air temperature for operation: | -35...80 °C |
| Product weight: | 2.1 kg |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP121023EN_V2 |
| Code EAN: | 3606480520129 |
|---|
