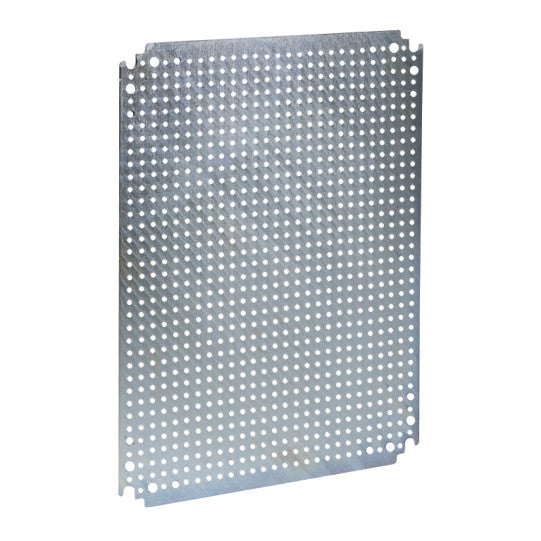

Microperforated mounting plate H1000xW1000 w/holes diam 3,6mm on 12,5mm pitch - NSYMF1010
SKU : NSYMF1010
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Microperforated mounting plate H1000xW1000 w/holes diam 3,6mm on 12,5mm pitch - NSYMF1010
DESCRIPTION
| Range: | Spacial |
|---|---|
| Accessory / separate part category: | Mounting accessory |
| Product or component type: | Mounting plate |
| Device application: | Multi-purpose |
| Enclosure nominal dimensions: | 1000 mmW: 1000 mm |
| Mounting location: | Direct fixing on backstudsStep slide |
| Mounting plate description: | Microperforated |
| Range compatibility: | Spacial S3DSpacial CRNSpacial S3XThalassa PLM |
| Quantity per set: | Set of 1 |
| Material: | Galvanised steel |
| Fixing mode: | Screwed on backstuds - screw type M8By fixing element |
|---|---|
| Maximum load: | 250 kg S3D, CRN, S3X enclosures150 kg PLM enclosure |
| Permanent permissible load: | 225.6 kg S3D, CRN, S3X enclosures135.4 kg PLM enclosure |
| Height: | 950 mm |
| Width: | 950 mm |
| Surface and useful surface: | 90.3 dm² |
| Thickness: | 2.5 mm |
| Product weight: | 17.826 kg |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Environmental Disclosure: | ENVPEP100104EN |
| Code EAN: | 3606480182976 |
|---|
