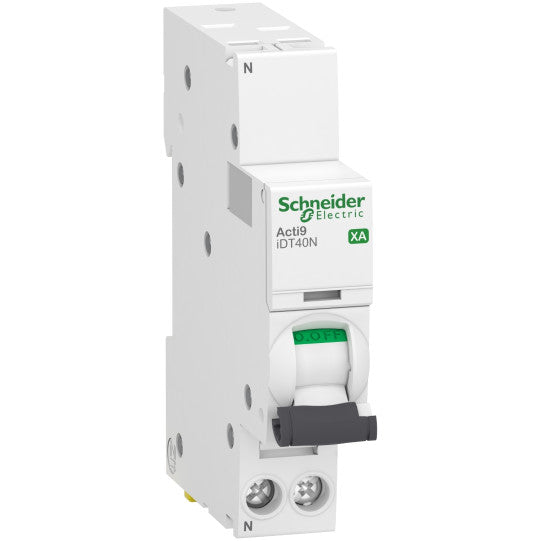

Miniature circuit-breaker, Acti9 iDT40N XA, 1P+N, 16 A, C curve, 6000 A (IEC 60898-1), 10 kA (IEC 60947-2) - A9PE4616
SKU : A9PE4616
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Miniature circuit-breaker, Acti9 iDT40N XA, 1P+N, 16 A, C curve, 6000 A (IEC 60898-1), 10 kA (IEC 60947-2) - A9PE4616
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product name: | Acti9 iDT40 XA |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | IDT40N XA |
| Device application: | Distribution |
| Poles description: | 1P + N |
| Number of protected poles: | 1 |
| Neutral position: | Left |
| [In] rated current: | 16 A |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity code: | N |
| Breaking capacity: | 6000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-110 kA Icu at 230 V AC 50 Hz conforming to EN/IEC 60947-2 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 230 V AC 50 Hz |
| Magnetic tripping limit: | 5...10 x In conforming to EN/IEC 60898-18 x In +/- 20 % conforming to EN/IEC 60947-2 |
| [Ics] rated service breaking capacity: | 6000 A 100 % x Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-17.5 kA 75 % x Icu at 230 V AC 50 Hz conforming to EN/IEC 60947-2 |
| Limitation class: | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage: | 400 V AC 50 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60947-2 |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indicationTrip indicator |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 85 mm |
| Width: | 18 mm |
| Depth: | 74 mm |
| Product weight: | 110 g |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 20000 cycles |
| Locking options description: | Padlocking device |
| Top connection: | Screwless |
| Bottom connection: | Screw |
| Connections - terminals: | Screwless type terminals top comb busbarTunnel type terminals bottom 1...10 mm² flexibleTunnel type terminals bottom 1...16 mm² rigid |
| Wire stripping length: | 14 mm for bottom connection |
| Tightening torque: | 2 N.m bottom |
| Earth-leakage protection: | Separate block |
| Compatibility code: | IDT40N XA |
| Standards: | EN/IEC 60898-1EN/IEC 60947-2 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 3 conforming to EN/IEC 60947-2 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| EU RoHS Directive: | CompliantMercury free |
| Code EAN: | 3606489741143 |
|---|
