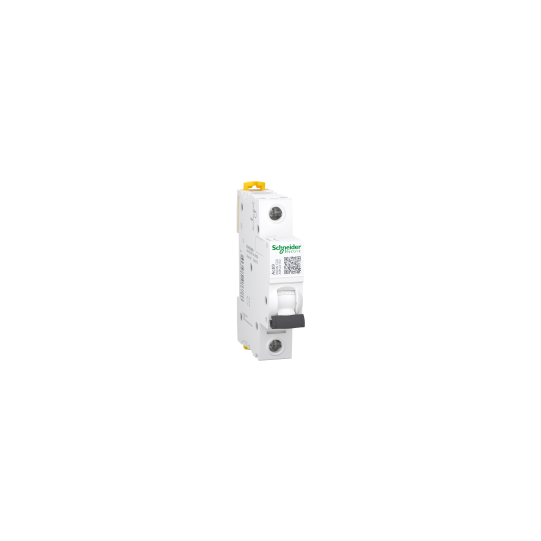

Miniature circuit breaker (MCB), Acti9 iK60N, 1P, 50A, C curve, 6000A (IEC/EN 60898-1) - A9K24150
SKU : A9K24150
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Miniature circuit breaker (MCB), Acti9 iK60N, 1P, 50A, C curve, 6000A (IEC/EN 60898-1) - A9K24150
DESCRIPTION
| Device application: | Distribution |
|---|---|
| Range: | Acti9 |
| Range of product: | IK60 |
| Product name: | Acti9 iK60 |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | iK60N |
| Poles description: | 1P |
| Number of protected poles: | 1 |
| [In] rated current: | 50 A at 30 °C |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity: | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Suitability for isolation: | Yes conforming to EN/IEC 60898-1 |
| Standards: | EN/IEC 60898-1 |
| Network frequency: | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 230 V AC 50/60 Hz |
| Magnetic tripping limit: | 5...10 x In |
| [Ics] rated service breaking capacity: | 6000 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz |
| Limitation class: | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage: | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60898-1 |
| Contact position indicator: | No |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Connection pitch: | 18 mm between devices |
| 9 mm pitches: | 2 |
| Height: | 85 mm |
| Width: | 18 mm |
| Depth: | 78.5 mm |
| Net weight: | 100 g |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 10000 cycles |
| Locking options description: | Padlocking device |
| Connections - terminals: | Tunnel type terminal (top or bottom) 1...35 mm² rigidTunnel type terminal (top or bottom) 1...25 mm² flexible |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 3.5 N.m top or bottom |
| Earth-leakage protection: | Without |
| Compatibility code: | IK60 |
| Market segment: | Small commercial |
| IP degree of protection: | IP20 conforming to IEC 60529 |
|---|---|
| Pollution degree: | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category: | II |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480086786 |
|---|
